دیتاشیت TLV1117-18IDCYR
مشخصات دیتاشیت
| نام دیتاشیت | TLV1117 Datasheet |
|---|---|
| حجم فایل | 1669.188 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 40 |

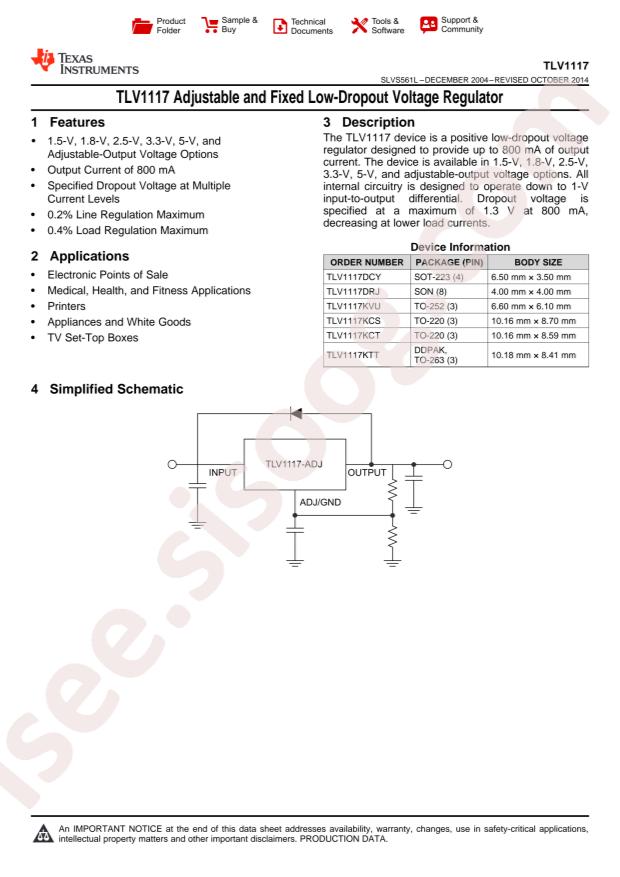

دانلود دیتاشیت TLV1117 Datasheet |
TLV1117 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments TLV1117-18IDCYR
- Output Type: Fixed
- Output Current: 800mA
- Output Voltage: 1.8V
- Dropout Voltage: 1.3V@(800mA)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 15V
- Operating Temperature: -40°C~+125°C
- Power Supply Rejection Ratio (PSRR): 75dB@(120Hz)
- Package: SOT-223-4
- Manufacturer: Texas Instruments
- Base Part Number: TLV111
- Supplier Device Package: SOT-223-4
- Voltage - Output (Max): -
- Output Configuration: Positive
- PSRR: 75dB (120Hz)
- Voltage Dropout (Max): 1.3V @ 800mA
- Number of Regulators: 1
- Mounting Type: Surface Mount
- Packaging: Cut Tape (CT)
- Voltage - Output (Min/Fixed): 1.8V
- Protection Features: Over Current, Over Temperature
- Series: -
- Voltage - Input (Max): 15V
- Current - Output: 800mA
- Part Status: Active
- Package / Case: TO-261-4, TO-261AA
- Control Features: -
- detail: Linear Voltage Regulator IC 1 Output 800mA SOT-223-4
