دیتاشیت STB80NF03L-04T4

STB80NF03L-04T4

مشخصات دیتاشیت

نام دیتاشیت STB80NF03L-04T4
حجم فایل 326.479 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

دانلود دیتاشیت STB80NF03L-04T4

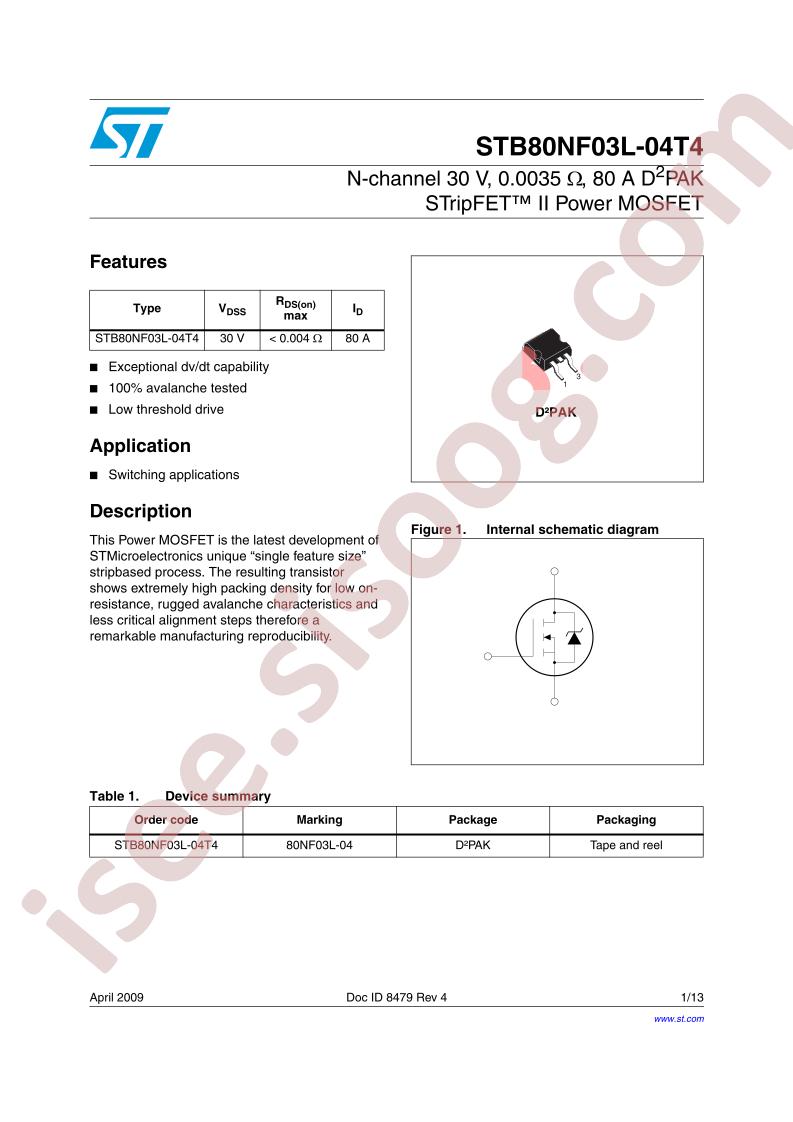

STB80NF03L-04T4 Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: STripFET™ II
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 30V
  • Current - Continuous Drain (Id) @ 25°C: 80A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Rds On (Max) @ Id, Vgs: 4mOhm @ 40A, 10V
  • Vgs(th) (Max) @ Id: 1V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 110nC @ 4.5V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 5500pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 300W (Tc)
  • Operating Temperature: -60°C ~ 175°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: D2PAK
  • Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
  • Base Part Number: STB80N
  • detail: N-Channel 30V 80A (Tc) 300W (Tc) Surface Mount D2PAK
