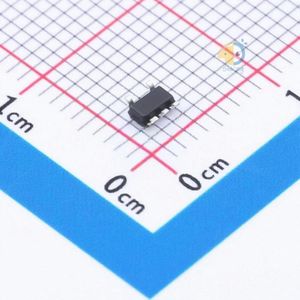

TPS7A2418DBVR دیتاشیت

مشخصات دیتاشیت

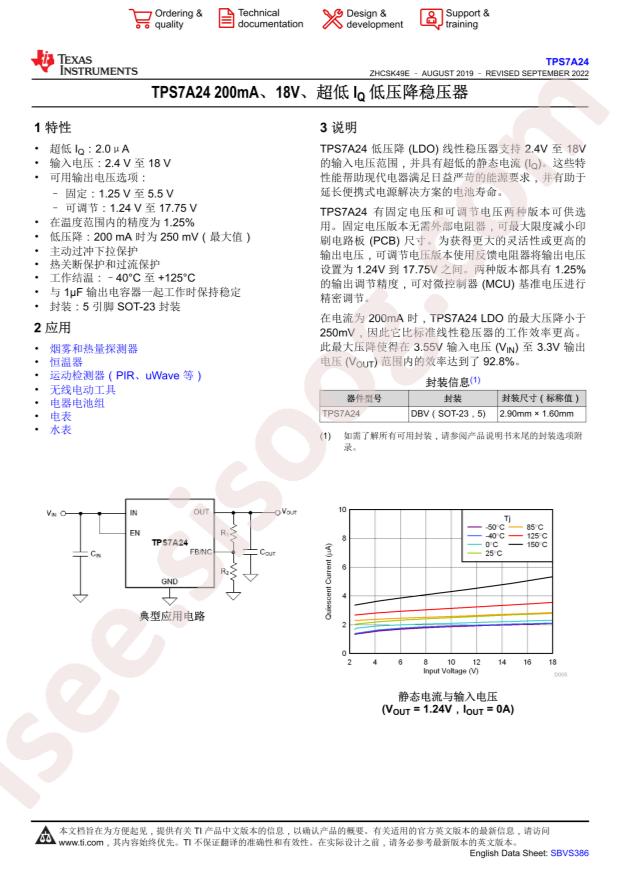

دانلود دیتاشیت TPS7A2418DBVR	دانلود دیتاشیت

TPS7A24 27 pages

RoHS: true
Category: Power Supply Chip/Linear Voltage Regulators (LDO)
Datasheet: Texas Instruments TPS7A2418DBVR
Output Current: 200mA
Output Voltage: 1.8V
Dropout Voltage: 0.25V@(200mA)
Output Polarity: positive
Number of Outputs: 1
Maximum Input Voltage: 18V
Operating Temperature: -40°C~+125°C@(Tj)
Quiescent Current (Ground Current): 4.5uA
Package: SOT-23-5
Manufacturer: Texas Instruments
Base Part Number: TPS7A2
Supplier Device Package: SOT-23-5
Voltage - Output (Max): -
Output Configuration: Positive
Current - Quiescent (Iq): 4.5µA
Output Type: Fixed
PSRR: 75dB ~ 62dB (10Hz ~ 1kHz)
Voltage Dropout (Max): 0.25V @ 200mA
Number of Regulators: 1
Mounting Type: Surface Mount
Package / Case: SC-74A, SOT-753
Voltage - Output (Min/Fixed): 1.8V
Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Series: -
Voltage - Input (Max): 18V
Current - Output: 200mA
Part Status: Active
Control Features: Enable
detail: Linear Voltage Regulator IC 1 Output 200mA SOT-23-5
