دیتاشیت TN3050H-12GY-TR

TN3050H-12GY-TR

مشخصات دیتاشیت

نام دیتاشیت TN3050H-12GY-TR
حجم فایل 270.842 کیلوبایت
نوع فایل pdf
تعداد صفحات 11

دانلود دیتاشیت TN3050H-12GY-TR

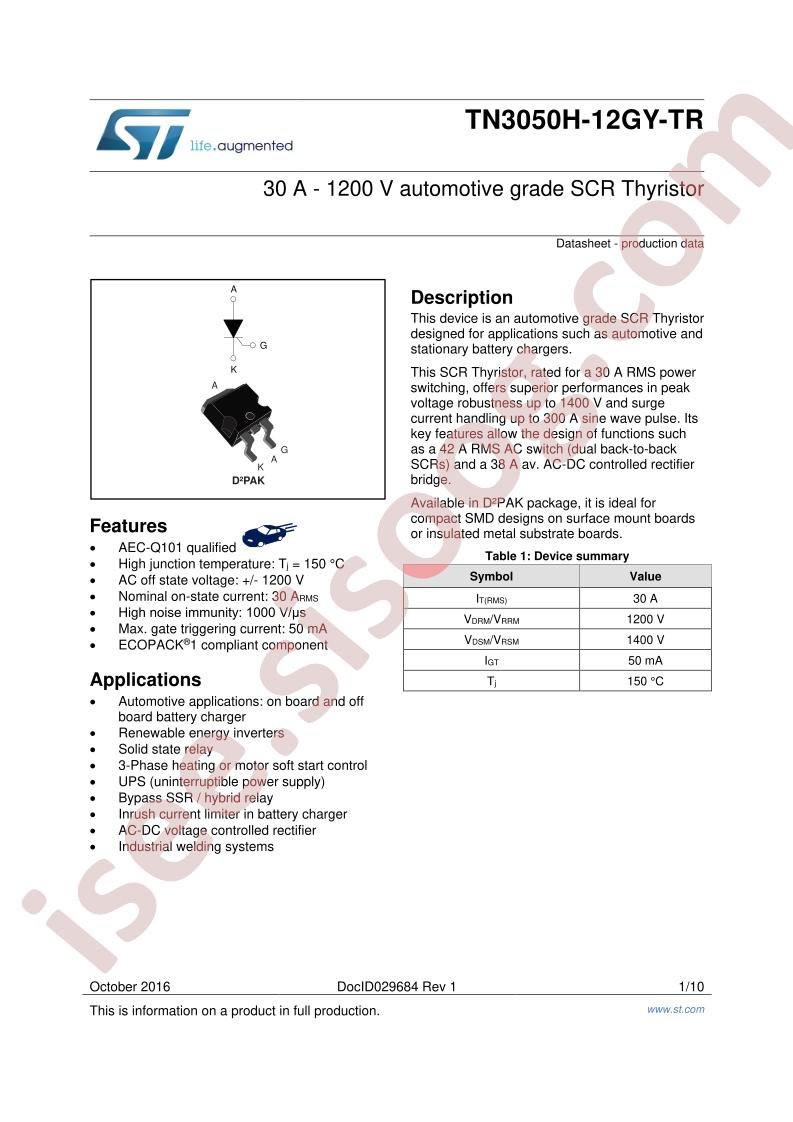

TN3050H-12GY-TR Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: Automotive, AEC-Q101, ECOPACK®1
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Voltage - Off State: 1.2kV
  • Voltage - Gate Trigger (Vgt) (Max): 1.3V
  • Current - Gate Trigger (Igt) (Max): 50mA
  • Voltage - On State (Vtm) (Max): 1.65V
  • Current - On State (It (AV)) (Max): 19A
  • Current - On State (It (RMS)) (Max): 30A
  • Current - Hold (Ih) (Max): 100mA
  • Current - Off State (Max): 5µA
  • Current - Non Rep. Surge 50, 60Hz (Itsm): 300A, 330A
  • SCR Type: Sensitive Gate
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
  • Supplier Device Package: D2PAK
  • Base Part Number: TN3050
  • detail: SCR 1.2kV 30A Sensitive Gate Surface Mount D2PAK
