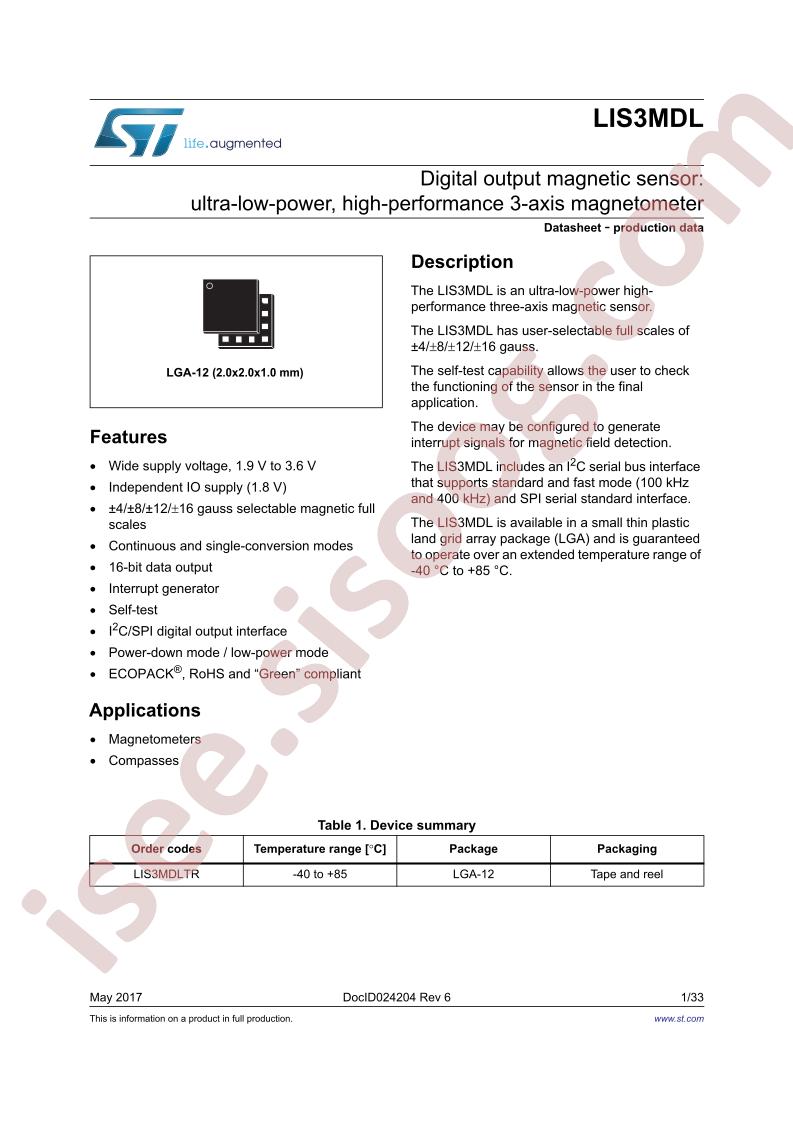

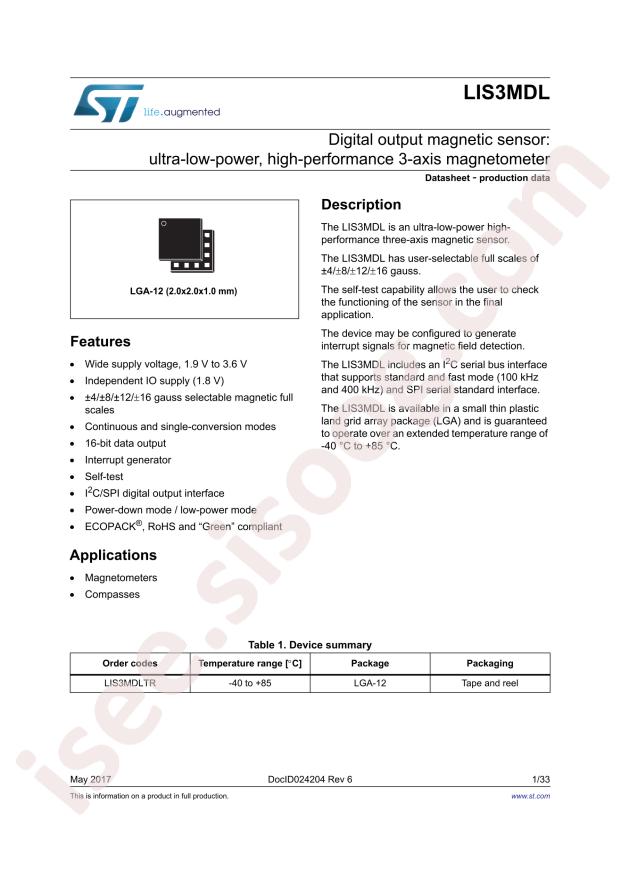

دیتاشیت LIS3MDLTR
مشخصات دیتاشیت
| نام دیتاشیت |
LIS3MDL
|
| حجم فایل |
1709.153
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
33
|
مشخصات
-
RoHS:
true
-
Category:
Sensors/Hall Sensor
-
Datasheet:
STMicroelectronics LIS3MDLTR
-
supply voltage:
1.9V~3.6V
-
Operating Temperature:
-40°C~+85°C
-
Package:
LGA-12(2x2)
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Technology:
Magnetoresistive
-
Axis:
X, Y, Z
-
Output Type:
I²C, SPI
-
Sensing Range:
±0.4mT, ±0.8mT, ±1.2mT, ±1.6mT
-
Voltage - Supply:
1.9V ~ 3.6V
-
Current - Supply (Max):
270µA (Typ)
-
Current - Output (Max):
-
-
Resolution:
16 b
-
Bandwidth:
-
-
Features:
Selectable Scale
-
Supplier Device Package:
12-LGA (2x2)
-
Mounting Type:
Surface Mount
-
Package / Case:
12-VFLGA
-
Base Part Number:
LIS3
-
detail:
Magnetoresistive Sensor X, Y, Z Axis 12-LGA (2x2)
