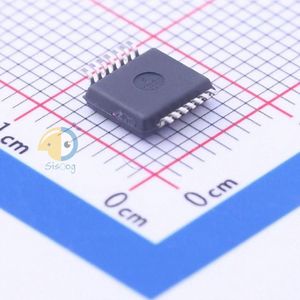

SN74LS07DBR دیتاشیت

مشخصات دیتاشیت

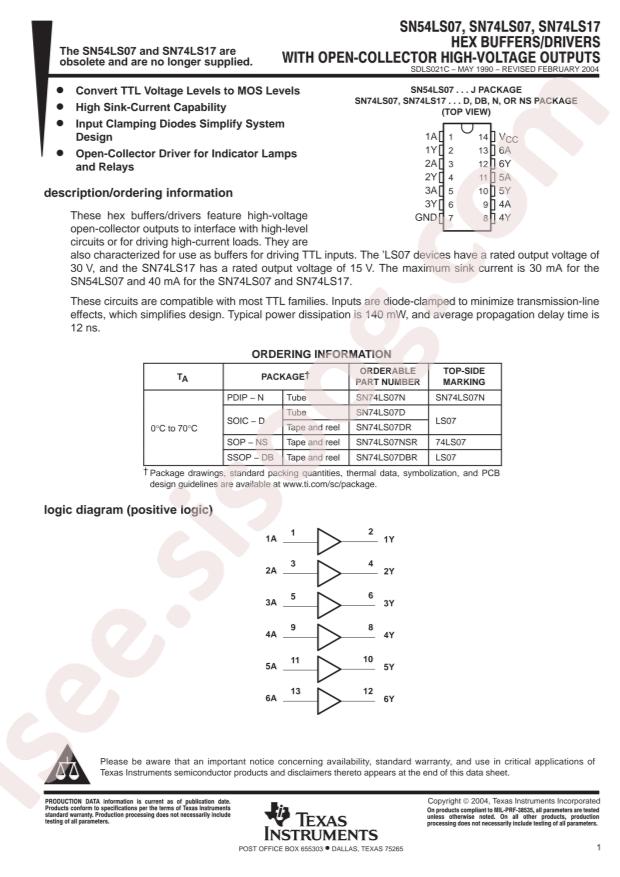

مشاهده دیتاشیت SN74LS07DBR	دانلود دیتاشیت

RoHS: true
Category: Logic ICs/Buffer/Driver/Transceiver
Datasheet: Texas Instruments SN74LS07DBR
Package: SSOP-14
Manufacturer: Texas Instruments
Number of Elements: 6
Operating Temperature: 0°C ~ 70°C (TA)
Output Type: Open Collector
Supplier Device Package: 14-SSOP
Series: 74LS
Mounting Type: Surface Mount
Base Part Number: SN74LS07
Packaging: Cut Tape (CT)
Number of Bits per Element: 1
Current - Output High, Low: -, 40mA
Input Type: -
Package / Case: 14-SSOP (0.209", 5.30mm Width)
Part Status: Active
Logic Type: Buffer, Non-Inverting
Voltage - Supply: 4.75V ~ 5.25V
detail: Buffer, Non-Inverting 6 Element 1 Bit per Element Open Collector Output 14-SSOP
