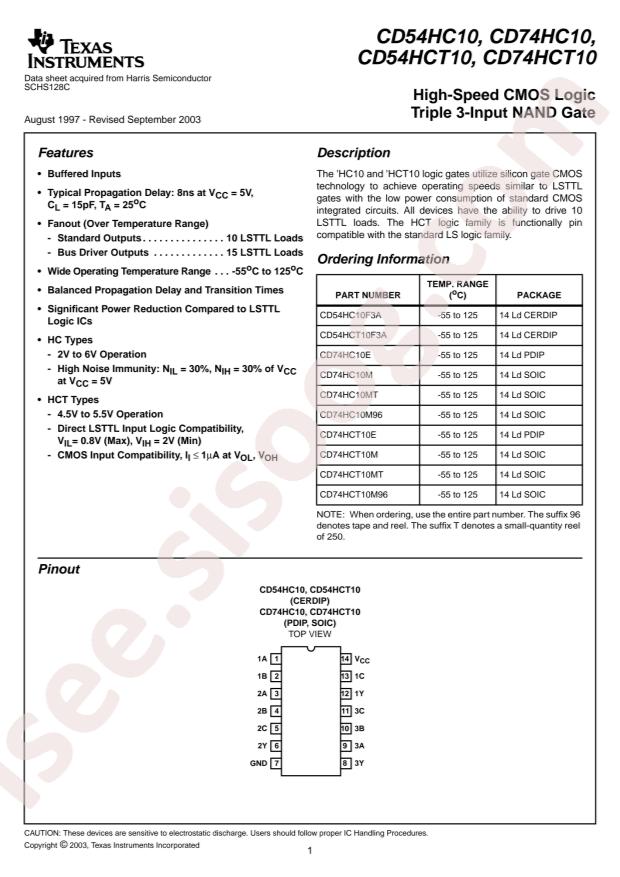

CD74HCT10M96 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | CD74HCT10M96 |
|---|---|
| حجم فایل | 88.433 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 15 |
دانلود دیتاشیت CD74HCT10M96 |
دانلود دیتاشیت |
|---|
سایر مستندات
Logic Guide 20 pages
Signal Switch Data Book 1267 pages
Digital Logic Data Book 794 pages
CD54,74HC(T)10 16 pages
مشخصات فنی
- RoHS: true
- Series: 74HCT
- Category: Logic ICs/Gates
- Datasheet: Texas Instruments CD74HCT10M96
- Sink Current: 4mA
- Source Current: 4mA
- Supply Voltage: 4.5V~5.5V
- Logic Gate Type: NAND Gates
- Number of Channels: 3
- Low Level Range (VIL): 0.8V
- Operating Temperature: -55°C~+125°C
- High Level Range (VIH): 2V
- Propagation Delay Time: 24ns@4.5V,50pF
- Quiescent Current (Max): 2uA
- Package: SOP-14
- Manufacturer: Texas Instruments
- Logic Level - High: 2V
- Base Part Number: 74HCT10
- Supplier Device Package: 14-SOIC
- Logic Level - Low: 0.8V
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
- Current - Quiescent (Max): 2µA
- Current - Output High, Low: 4mA, 4mA
- Features: -
- Mounting Type: Surface Mount
- Packaging: Cut Tape (CT)
- Voltage - Supply: 4.5V ~ 5.5V
- Number of Circuits: 3
- Max Propagation Delay @ V, Max CL: 24ns @ 4.5V, 50pF
- Number of Inputs: 3
- Part Status: Active
- Logic Type: NAND Gate
- detail: NAND Gate IC 3 Channel 14-SOIC
