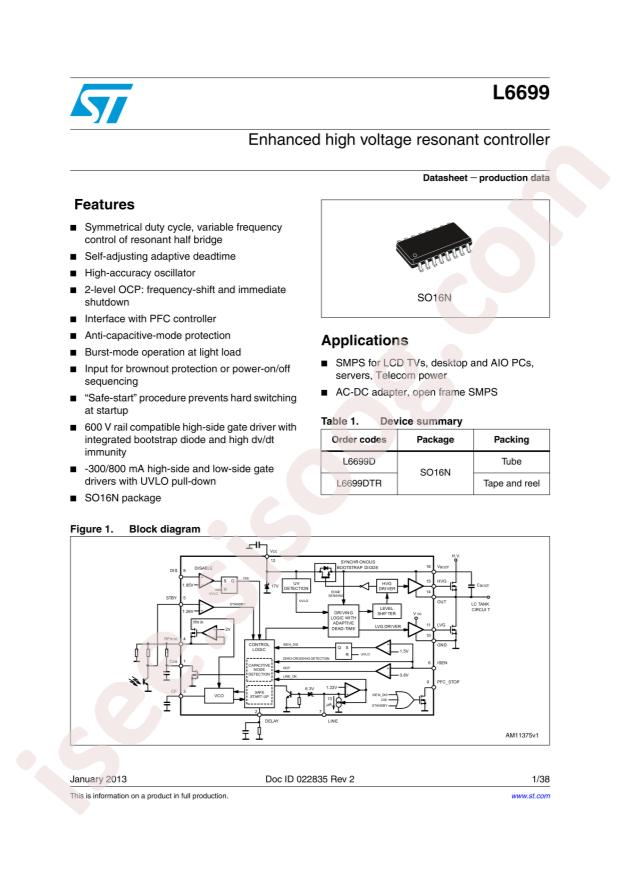

دیتاشیت L6699DTR

L6699

مشخصات دیتاشیت

نام دیتاشیت L6699
حجم فایل 977.693 کیلوبایت
نوع فایل pdf
تعداد صفحات 38

دانلود دیتاشیت L6699

L6699 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/AC-DC Controllers & Regulators
  • Topology: Half-Bridge
  • Datasheet: STMicroelectronics L6699DTR
  • Duty Cycle: 50%
  • Supply Voltage: 8.85V~16V
  • Output Isolation: Isolation
  • Switching Frequency: 60kHz~235kHz
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Package: SOP-16
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Internal Switch(s): No
  • Voltage - Breakdown: -
  • Voltage - Start Up: 10.7V
  • Voltage - Supply (Vcc/Vdd): 8.85V ~ 16V
  • Frequency - Switching: 60kHz ~ 235kHz
  • Fault Protection: Current Limiting
  • Control Features: Soft Start
  • Package / Case: 16-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 16-SO
  • Mounting Type: Surface Mount
  • Base Part Number: L6699
  • detail: Converter Offline Half-Bridge Topology 60kHz ~ 235kHz 16-SO
