دیتاشیت CD74AC32M96
مشخصات دیتاشیت
| نام دیتاشیت |

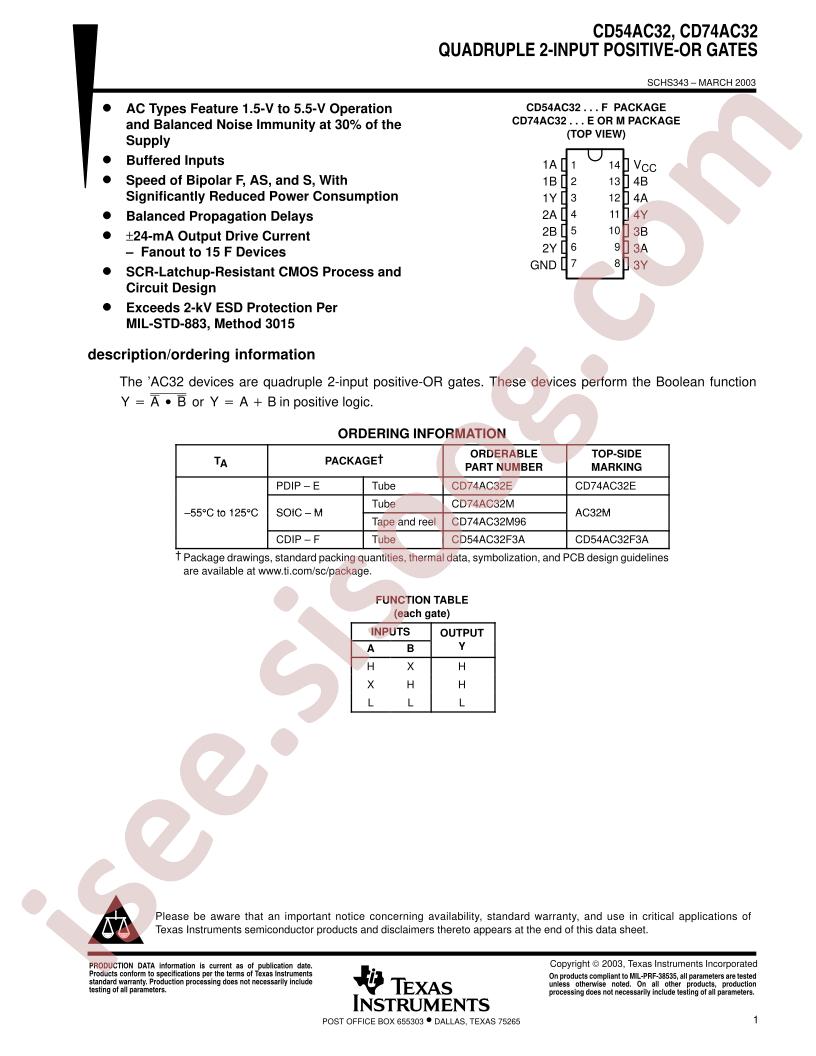

CD54,74AC32
|
| حجم فایل |
1039.17
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
16
|
مشخصات
-
RoHS:
true
-
Series:
74AC
-
Category:
Logic ICs/Gates
-
Datasheet:
Texas Instruments CD74AC32M96
-
Sink Current:
24mA
-
Source Current:
24mA
-
Supply Voltage:
1.5V~5.5V
-
Logic Gate Type:
ORGate
-
Number of Channels:
4
-
Low Level Range (VIL):
0.3V~1.65V
-
Operating Temperature:
-55°C~+125°C
-
High Level Range (VIH):
1.2V~3.85V
-
Propagation Delay Time:
9.5ns@5V,50pF
-
Quiescent Current (Max):
4uA
-
Package:
SOP-14
-
Manufacturer:
Texas Instruments
-
Logic Level - High:
1.2V ~ 3.85V
-
Base Part Number:
74AC32
-
Supplier Device Package:
14-SOIC
-
Logic Level - Low:
0.3V ~ 1.65V
-
Package / Case:
14-SOIC (0.154", 3.90mm Width)
-
Current - Quiescent (Max):
4µA
-
Current - Output High, Low:
24mA, 24mA
-
Features:
-
-
Mounting Type:
Surface Mount
-
Packaging:
Cut Tape (CT)
-
Voltage - Supply:
1.5V ~ 5.5V
-
Number of Circuits:
4
-
Max Propagation Delay @ V, Max CL:
9.5ns @ 5V, 50pF
-
Number of Inputs:
2
-
Part Status:
Active
-
Logic Type:
OR Gate
-
detail:
OR Gate IC 4 Channel 14-SOIC
