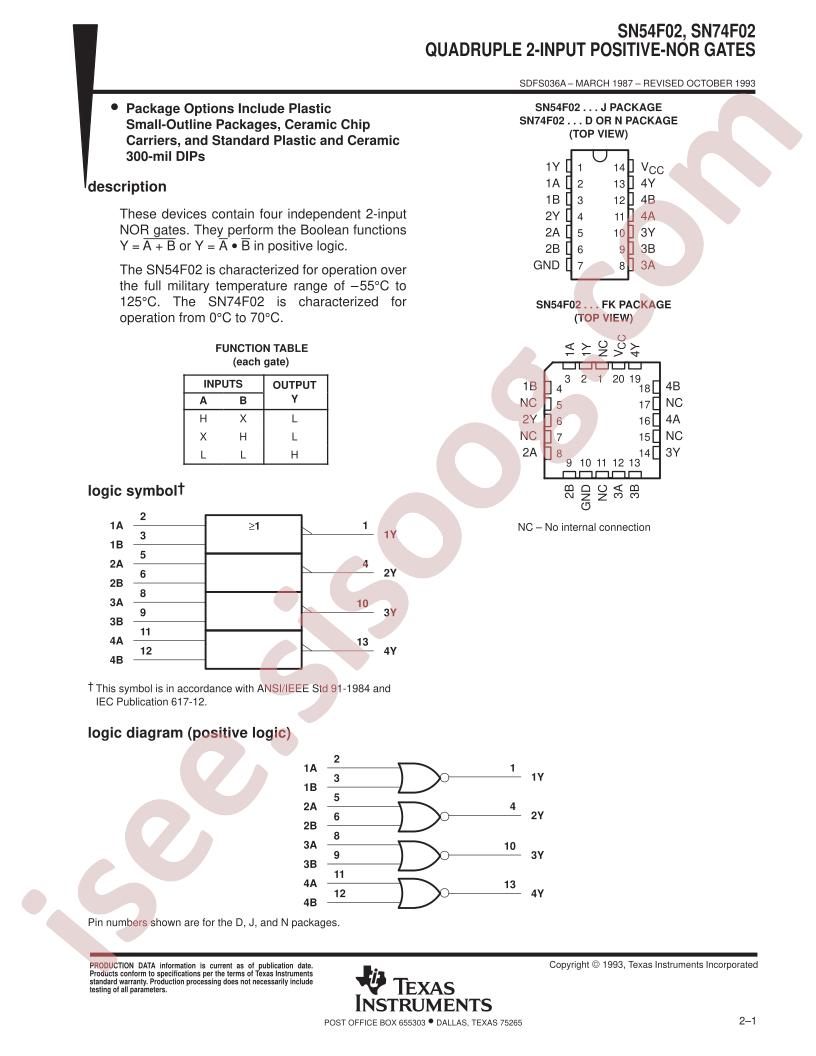

- دیتاشیت SN74F02DR
SN74F02DR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN74F02DR |
|---|---|
| حجم فایل | 798.439 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 16 |
دانلود دیتاشیت SN74F02DR |
دانلود دیتاشیت |
|---|
سایر مستندات
SN54F02, SN74F02 18 pages
SN74F02N 18 pages
مشخصات فنی
- RoHS: true
- Series: 74F
- Category: Logic ICs/Gates
- Datasheet: Texas Instruments SN74F02DR
- Sink Current: 20mA
- Source Current: 1mA
- Supply Voltage: 4.5V~5.5V
- Logic Gate Type: NORGate
- Number of Channels: 4
- Low Level Range (VIL): 0.8V
- Operating Temperature: 0°C~+70°C
- High Level Range (VIH): 2V
- Propagation Delay Time: 5.5ns@5V,50pF
- Package: SOP-14
- Manufacturer: Texas Instruments
- Logic Level - High: 2V
- Base Part Number: SN74F02
- Supplier Device Package: 14-SOIC
- Logic Level - Low: 0.8V
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
- Current - Output High, Low: 1mA, 20mA
- Features: -
- Mounting Type: Surface Mount
- Packaging: Cut Tape (CT)
- Voltage - Supply: 4.5V ~ 5.5V
- Number of Circuits: 4
- Max Propagation Delay @ V, Max CL: 5.5ns @ 5V, 50pF
- Number of Inputs: 2
- Part Status: Active
- Logic Type: NOR Gate
- detail: NOR Gate IC 4 Channel 14-SOIC
