دیتاشیت TPL7407LADR

TPL7407LA Datasheet

مشخصات دیتاشیت

نام دیتاشیت TPL7407LA Datasheet
حجم فایل 1206.662 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

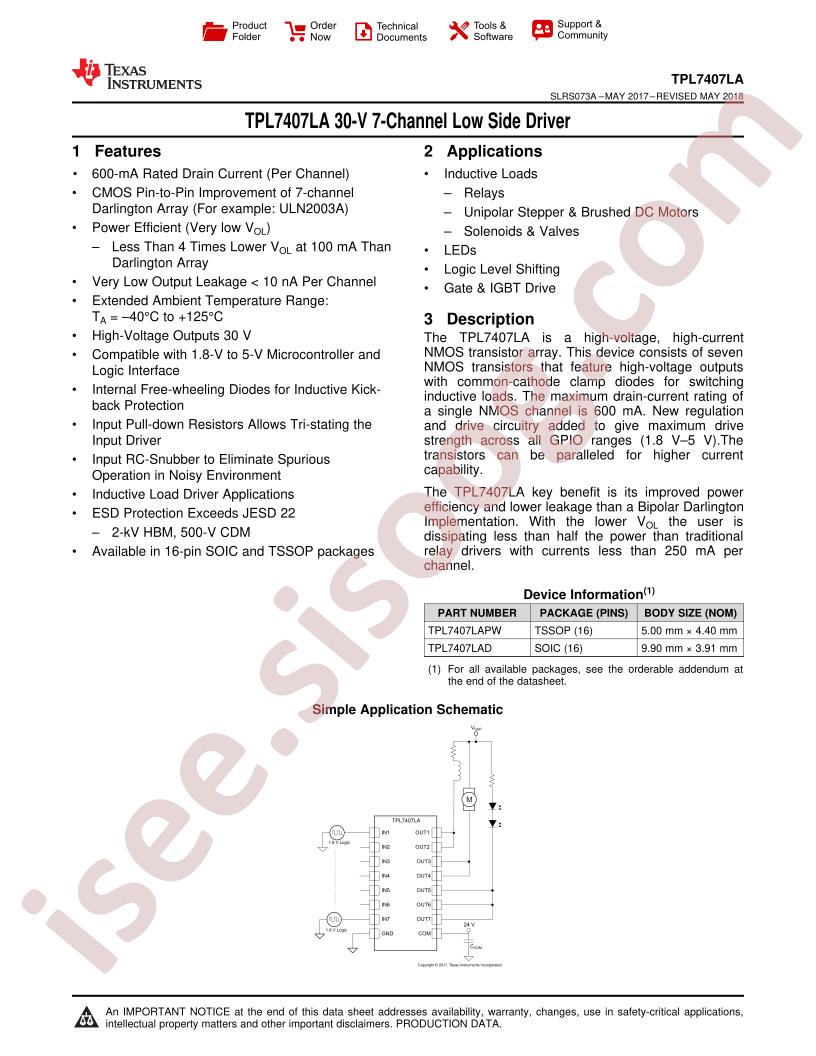

دانلود دیتاشیت TPL7407LA Datasheet

TPL7407LA Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: Texas Instruments TPL7407LADR
  • Package: SOP-16
  • Manufacturer: Texas Instruments
  • Series: -
  • Output Configuration: Low Side
  • Output Type: N-Channel
  • Fault Protection: -
  • Packaging: Cut Tape (CT)
  • Ratio - Input:Output: 1:1
  • Input Type: CMOS
  • Current - Output (Max): 500mA
  • Voltage - Supply (Vcc/Vdd): 6.5V ~ 30V
  • Switch Type: Relay, Solenoid Driver
  • Supplier Device Package: 16-SOIC
  • Base Part Number: TPL7407
  • Features: -
  • Voltage - Load: 30V (Max)
  • Interface: Parallel
  • Rds On (Typ): -
  • Mounting Type: Surface Mount
  • Package / Case: 16-SOIC (0.154", 3.90mm Width)
  • Number of Outputs: 7
  • Part Status: Active
  • Operating Temperature: -40°C ~ 125°C (TA)
  • detail: Power Switch/Driver 1:1 N-Channel 500mA 16-SOIC
