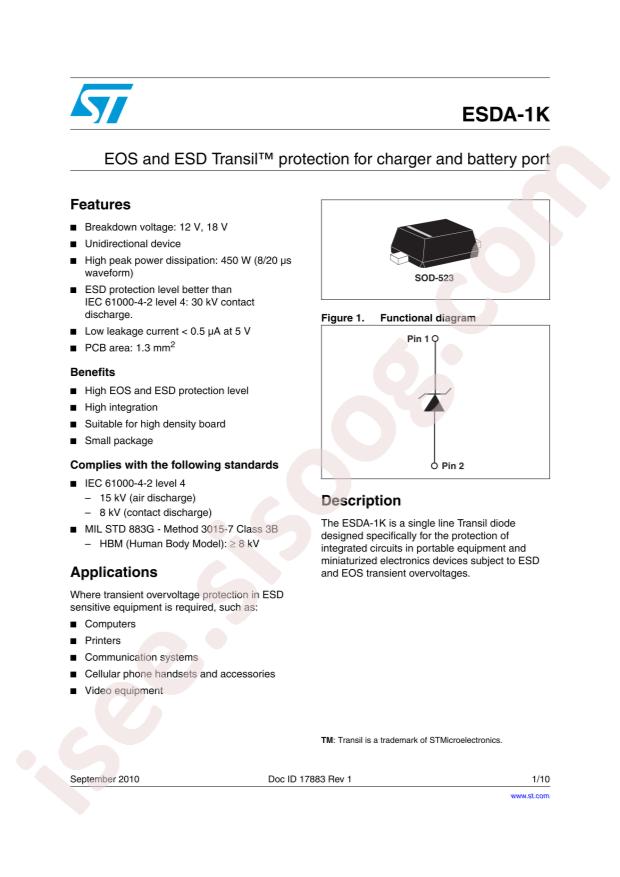

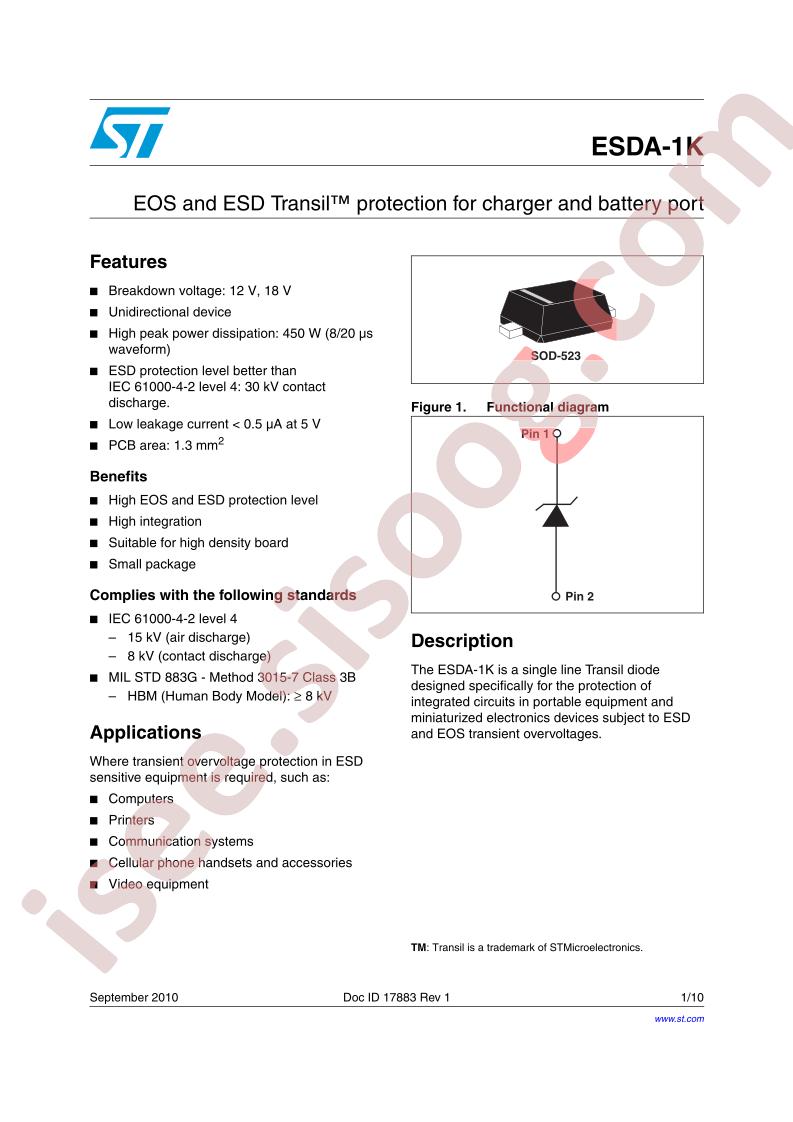

دیتاشیت ESDA18-1K
مشخصات دیتاشیت
| نام دیتاشیت |
ESDA-1K
|
| حجم فایل |
165.25
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
10
|
مشخصات
-
RoHS:
true
-
Category:
TVS/Fuse/Board Level Protection/ESD Protection Devices
-
Datasheet:
STMicroelectronics ESDA18-1K
-
Number of Lines:
1
-
Clamping Voltage@Ipp:
18V
-
Operating Temperature:
-40°C~+150°C@(Tj)
-
Breakdown Voltage (VBR):
18V
-
Peak Pulse Power(Ppp)@8/20us:
400W
-
Junction Capacitance(Cj)@1MHz:
105pF@1MHz
-
Peak Pulse Current(Ipp)@8/20us:
12A@(8/20us)
-
Reverse Stand-Off Voltage (Vrwm):
15V
-
Package:
SOD-523-2
-
Manufacturer:
STMicroelectronics
-
Series:
ESDA, TRANSIL™
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Type:
Zener
-
Unidirectional Channels:
1
-
Voltage - Reverse Standoff (Typ):
15V
-
Voltage - Breakdown (Min):
18V
-
Voltage - Clamping (Max) @ Ipp:
34V
-
Current - Peak Pulse (10/1000µs):
12A (8/20µs)
-
Power - Peak Pulse:
400W
-
Power Line Protection:
No
-
Applications:
General Purpose
-
Capacitance @ Frequency:
105pF @ 1MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
SC-79, SOD-523
-
Supplier Device Package:
SOD-523
-
Base Part Number:
ESDA18
-
detail:
34V Clamp 12A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523
