ST13007D دیتاشیت

ST13007D

مشخصات دیتاشیت

نام دیتاشیت ST13007D
حجم فایل 67.212 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

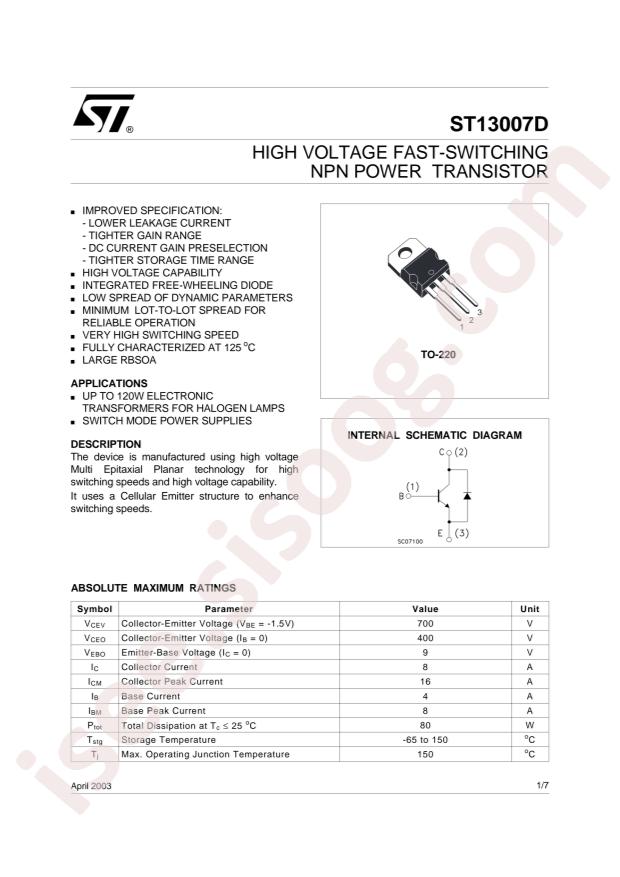

مشاهده دیتاشیت ST13007D

دانلود دیتاشیت

سایر مستندات

ST13007D 7 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: STMicroelectronics ST13007D
  • Transistor Type: NPN
  • Operating Temperature: +150°C@(Tj)
  • Collector Current (Ic): 8A
  • Power Dissipation (Pd): 80W
  • Transition Frequency (fT): -
  • DC Current Gain (hFE@Ic,Vce): 8@5A,5V
  • Collector Cut-Off Current (Icbo): 100uA
  • Collector-Emitter Breakdown Voltage (Vceo): 400V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 2V@8A,2A
  • Package: ITO-220AB-3
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Current - Collector (Ic) (Max): 8A
  • Voltage - Collector Emitter Breakdown (Max): 400V
  • Vce Saturation (Max) @ Ib, Ic: 2V @ 2A, 8A
  • Current - Collector Cutoff (Max): 100µA
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 8 @ 5A, 5V
  • Power - Max: 80W
  • Frequency - Transition: -
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3
  • Supplier Device Package: TO-220
  • Base Part Number: ST13007
  • detail: Bipolar (BJT) Transistor NPN 400V 8A 80W Through Hole TO-220
