IPS160HTR دیتاشیت

IPS160HTR

مشخصات دیتاشیت

نام دیتاشیت IPS160HTR
حجم فایل 75.545 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

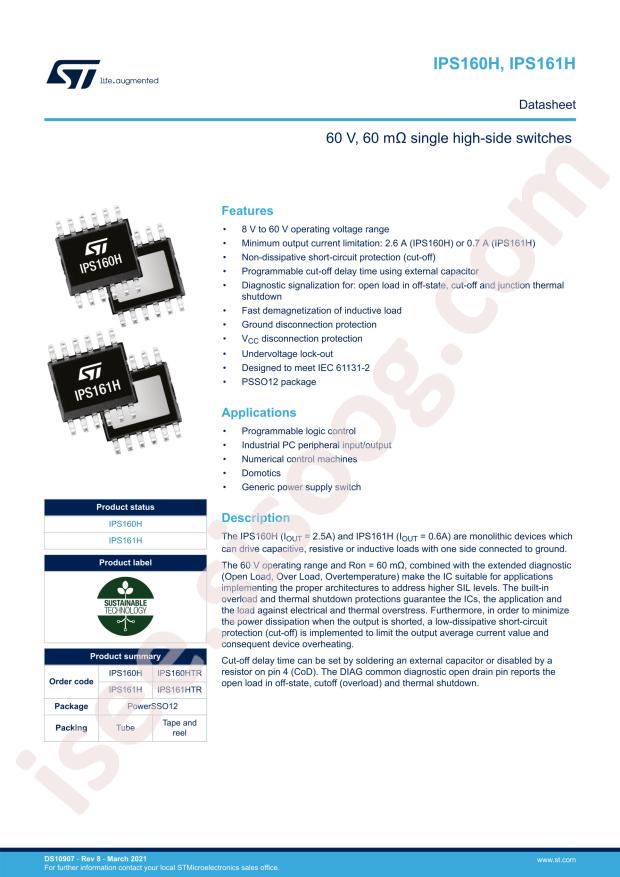

مشاهده دیتاشیت IPS160HTR

دانلود دیتاشیت

سایر مستندات

IPS160H 26 pages

IPS160H 26 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: STMicroelectronics IPS160HTR
  • Input Voltage: 8V~60V
  • Output Current: 2.5A
  • Number of Outputs: 1
  • Resistor On-State: 60mΩ
  • Operating Temperature -: -40°C~+125°C
  • Package: PowerSSO-12
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Switch Type: General Purpose
  • Ratio - Input:Output: 1:1
  • Output Configuration: High Side
  • Output Type: P-Channel
  • Interface: On/Off
  • Voltage - Load: 8V ~ 60V
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Current - Output (Max): 2.5A
  • Rds On (Typ): 60mOhm
  • Input Type: Non-Inverting
  • Features: -
  • Fault Protection: Over Temperature, UVLO
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: PowerSSO-12
  • Package / Case: 12-PowerLSOP (0.154", 3.90mm Width)
  • Base Part Number: IPS16
  • detail: Power Switch/Driver 1:1 P-Channel 2.5A PowerSSO-12
