TL284xB, TL384xB Datasheet دیتاشیت

مشخصات دیتاشیت

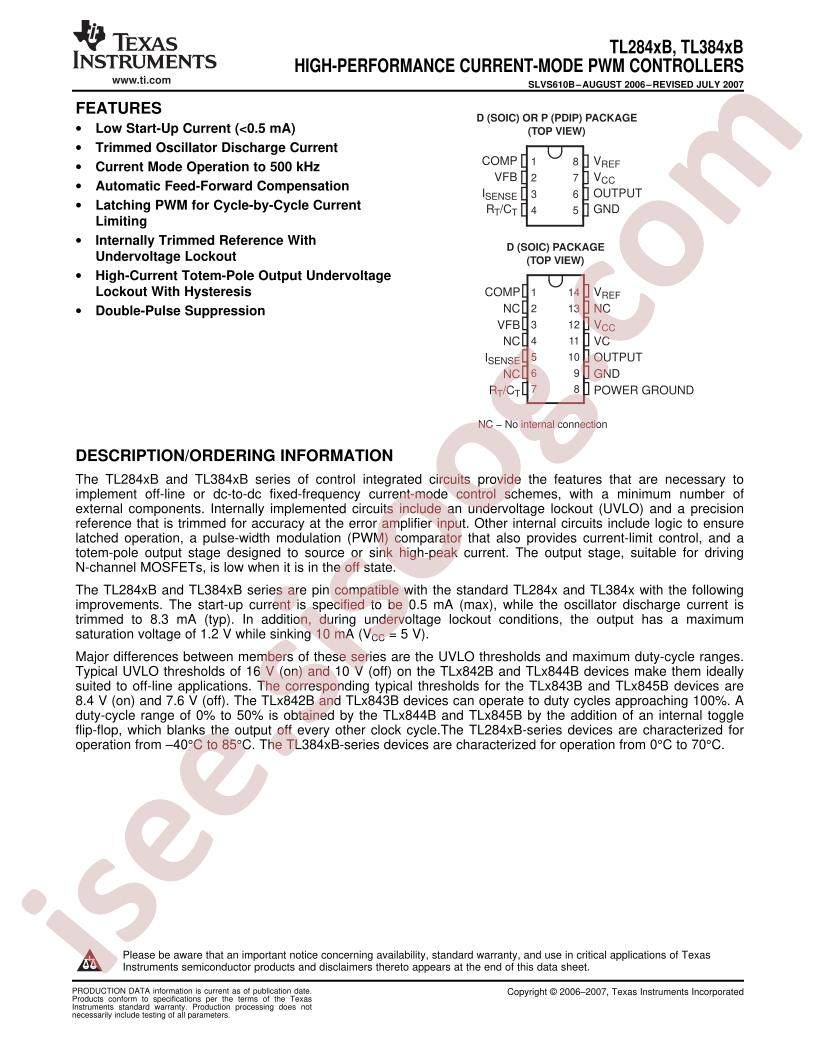

دانلود دیتاشیت TL284xB, TL384xB Datasheet	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Controllers
Function: Buck-boost type
Topology: Boost;Flyback
Datasheet: Texas Instruments TL2843BDR-8
Input Voltage: 7.6V~30V
Duty Cycle (Max): 96%
Number of Outputs: 1
Switching Frequency: 500kHz
Operating Temperature: -40°C~+85°C@(TA)
Synchronous Rectification: NO
Package: SOIC-8
Manufacturer: Texas Instruments
Voltage - Supply (Vcc/Vdd): 7.6V ~ 30V
Base Part Number: TL284
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Output Configuration: Positive
Series: -
Supplier Device Package: 14-SOIC
Frequency - Switching: Up to 500kHz
Part Status: Active
Mounting Type: Surface Mount
Control Features: Frequency Control
Clock Sync: No
Serial Interfaces: -
Packaging: Cut Tape (CT)
Synchronous Rectifier: No
Output Type: Transistor Driver
Output Phases: 1
detail: Boost, Flyback, Forward Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 14-SOIC
