STP24DP05BTR دیتاشیت

مشخصات دیتاشیت

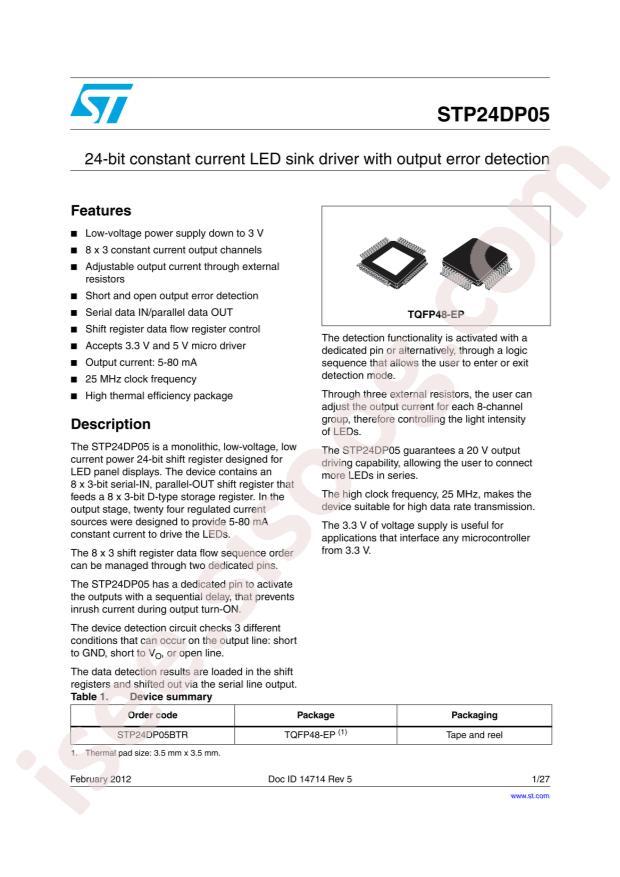

مشاهده دیتاشیت STP24DP05BTR	دانلود دیتاشیت

RoHS: true
Type: Linear
Category: Nixie Tube Driver/LED Driver/LED Drivers
Channels: 24
Topology: Shift Register
Datasheet: STMicroelectronics STP24DP05BTR
Input Voltage: 3V~5.5V
Output Current: 80mA
Output Voltage: 20V
Switch Frequency: 25MHz
Operating temperature: -40°C~+125°C
Package: TQFP-48(7x7)
Manufacturer: STMicroelectronics
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Internal Switch(s): Yes
Number of Outputs: 24
Voltage - Supply (Min): 3V
Voltage - Supply (Max): 5.5V
Voltage - Output: 20V
Current - Output / Channel: 80mA
Frequency: 25MHz
Dimming: -
Applications: -
Mounting Type: Surface Mount
Package / Case: 48-TQFP Exposed Pad
Supplier Device Package: 48-TQFP-EP (7x7)
Base Part Number: STP24D
detail: LED Driver IC 24 Output Linear Shift Register Dimming 80mA 48-TQFP-EP (7x7)
