CSD17581Q3A Datasheet دیتاشیت

مشخصات دیتاشیت

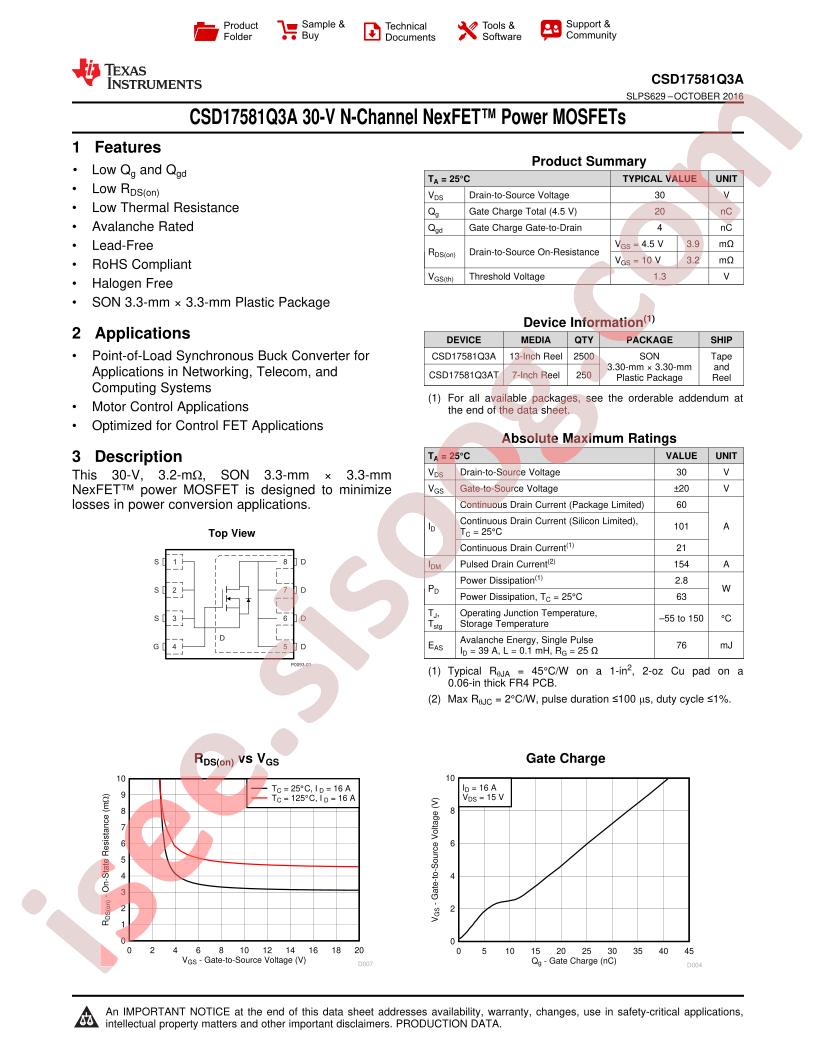

مشاهده دیتاشیت CSD17581Q3A Datasheet	دانلود دیتاشیت

RoHS: true
Category: Triode/MOS Tube/Transistor/MOSFETs
Datasheet: Texas Instruments CSD17581Q3AT
Package: DFN-8(3x3)
Manufacturer: Texas Instruments
FET Type: N-Channel
Vgs(th) (Max) @ Id: 1.7V @ 250µA
Base Part Number: CSD175
Supplier Device Package: 8-VSONP (3x3.15)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Input Capacitance (Ciss) (Max) @ Vds: 3640pF @ 15V
FET Feature: -
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 60A (Tc)
Mounting Type: Surface Mount
Rds On (Max) @ Id, Vgs: 3.8mOhm @ 16A, 10V
Packaging: Cut Tape (CT)
Operating Temperature: -55°C ~ 150°C (TJ)
Series: NexFET™
Package / Case: 8-PowerVDFN
Gate Charge (Qg) (Max) @ Vgs: 54nC @ 10V
Vgs (Max): ±20V
Part Status: Active
Power Dissipation (Max): 2.8W (Ta), 63W (Tc)
Technology: MOSFET (Metal Oxide)
detail: N-Channel 30V 60A (Tc) 2.8W (Ta), 63W (Tc) Surface Mount 8-VSONP (3x3.15)
