CD74AC175M96 دیتاشیت

مشخصات دیتاشیت

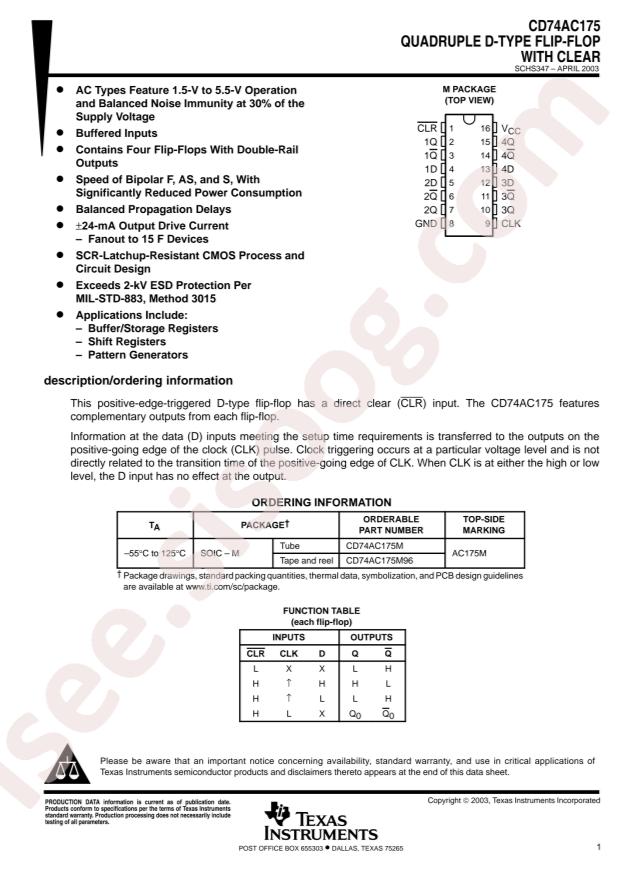

مشاهده دیتاشیت CD74AC175M96	دانلود دیتاشیت

RoHS: true
Type: D-Type
Series: 74AC
Category: Logic ICs/Flip Flops
Function: Reset
Datasheet: Texas Instruments CD74AC175M96
Output Type: 互补型
Sink Current: 24mA
Trigger Type: 上升沿
Source Current: 24mA
Supply Voltage: 1.5V~5.5V
Clock Frequency: 100MHz
Input Capacitance: 10pF
Quiescent Current (Iq): 8uA
Maximum Propagation Delay: 12.2ns@5V,50pF
Package: SOP-16
Manufacturer: Texas Instruments
Number of Elements: 1
Operating Temperature: -55°C ~ 125°C (TA)
Supplier Device Package: 16-SOIC
Current - Output High, Low: 24mA, 24mA
Voltage - Supply: 1.5V ~ 5.5V
Current - Quiescent (Iq): 8µA
Mounting Type: Surface Mount
Packaging: Cut Tape (CT)
Number of Bits per Element: 4
Max Propagation Delay @ V, Max CL: 12.2ns @ 5V, 50pF
Base Part Number: 74AC175
Part Status: Active
Package / Case: 16-SOIC (0.154", 3.90mm Width)
detail: Flip Flop 1 Element D-Type 4 Bit Positive Edge 16-SOIC (0.154", 3.90mm Width)
