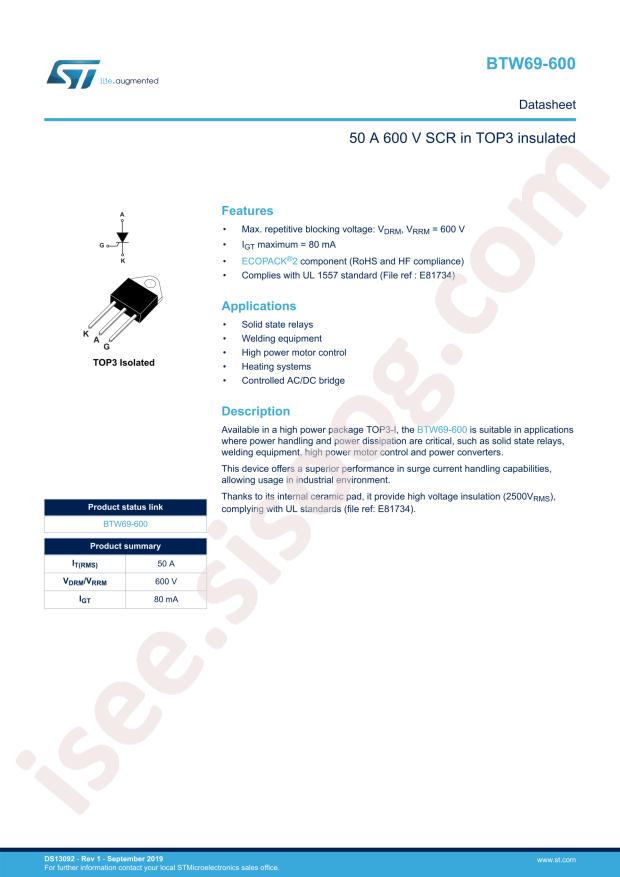

BTW69-600RG 数据手册
其他文档

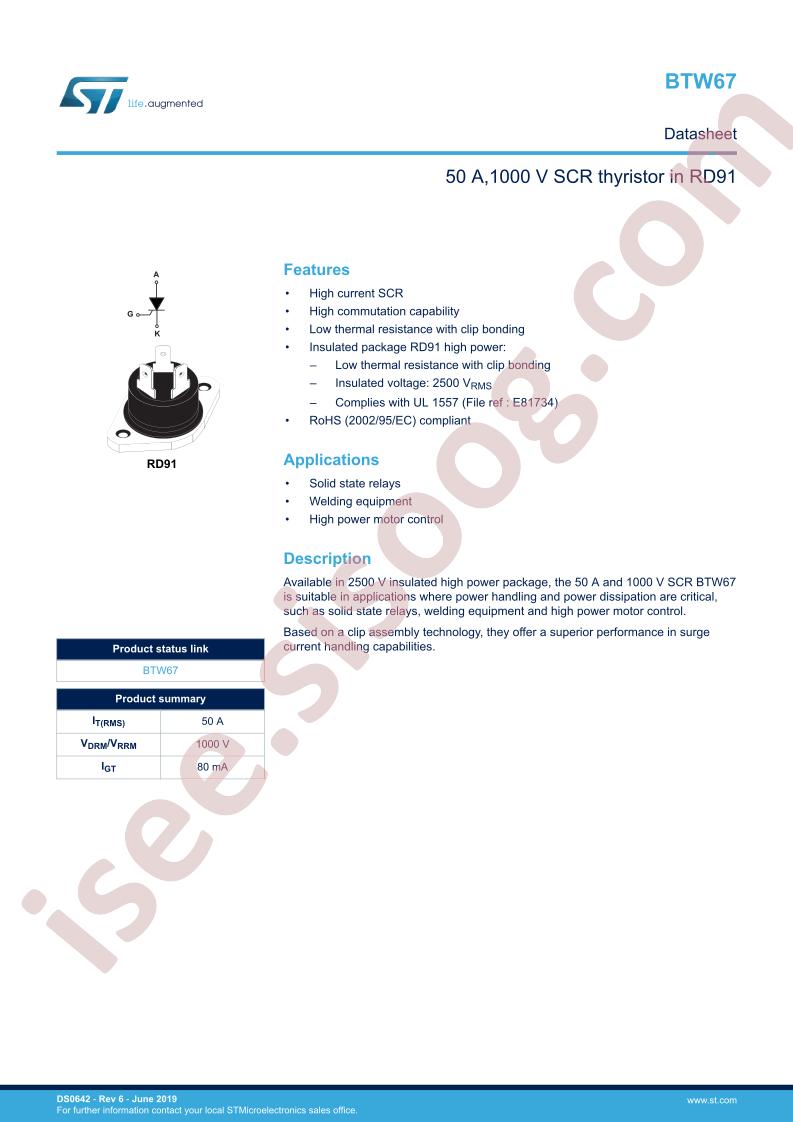

BTW67 Series 10 pages
技术规格
- RoHS: true
- Category: Triode/MOS Tube/Transistor/TRIACs
- SCR Type: 1个单向可控硅
- Datasheet: STMicroelectronics BTW69-600RG
- Holding Current (Ih): 150mA
- Operating Temperature: -40°C~+125°C
- Gate Trigger Current(Igt): 80mA
- Gate Trigger Voltage (Vgt): 1.3V
- RMS On-State Current(It (rms)): 50A
- Peak Forward On?State Voltage (Vtm): 1.9V
- Peak Repetitive Off?State Voltage (Vdrm): 600V
- Package: TOP-3
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Tube
- Part Status: Active
- Voltage - Off State: 600V
- Voltage - Gate Trigger (Vgt) (Max): 1.3V
- Current - Gate Trigger (Igt) (Max): 80mA
- Voltage - On State (Vtm) (Max): 1.9V
- Current - On State (It (AV)) (Max): 32A
- Current - On State (It (RMS)) (Max): 50A
- Current - Hold (Ih) (Max): 150mA
- Current - Off State (Max): 10µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 580A, 610A
- Mounting Type: Through Hole
- Package / Case: TOP-3
- Supplier Device Package: TOP3
- Base Part Number: BTW69
- detail: SCR 600V 50A Standard Recovery Through Hole TOP3
