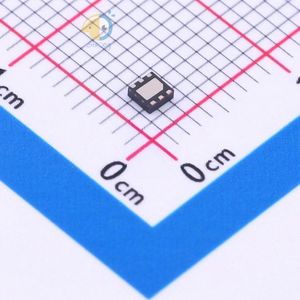

TVS1400DRVR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | TVS1400DRVR |
|---|---|
| حجم فایل | 83.999 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 22 |
دانلود دیتاشیت TVS1400DRVR |
دانلود دیتاشیت |
|---|
سایر مستندات
TVS1400 Datasheet 22 pages
مشخصات فنی
- RoHS: true
- Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
- Datasheet: Texas Instruments TVS1400DRVR
- Clamping Voltage@Ipp: 19.3V
- Operating Temperature: -40°C~+125°C@(Ta)
- Breakdown Voltage (VBR): 16.2V
- Peak Pulse Power(Ppp)@8/20us: 140W
- Junction Capacitance(Cj)@1MHz: 120pF@1MHz
- Peak Pulse Current(Ipp)@8/20us: 8A
- Reverse Stand-Off Voltage (Vrwm): 14V
- Package: DFN-6(2x2)
- Manufacturer: Texas Instruments
- Type: Zener
- Supplier Device Package: 6-WSON (2x2)
- Unidirectional Channels: 1
- Current - Peak Pulse (10/1000µs): 8A
- Applications: General Purpose
- Voltage - Reverse Standoff (Typ): 14V (Max)
- Voltage - Breakdown (Min): 16.2V
- Voltage - Clamping (Max) @ Ipp: 19.3V
- Capacitance @ Frequency: 120pF @ 1MHz
- Mounting Type: Surface Mount
- Power Line Protection: No
- Base Part Number: TVS140
- Packaging: Cut Tape (CT)
- Series: -
- Power - Peak Pulse: 140W
- Package / Case: 6-WDFN Exposed Pad
- Part Status: Active
- detail: 19.3V Clamp 8A Ipp Tvs Diode Surface Mount 6-WSON (2x2)
