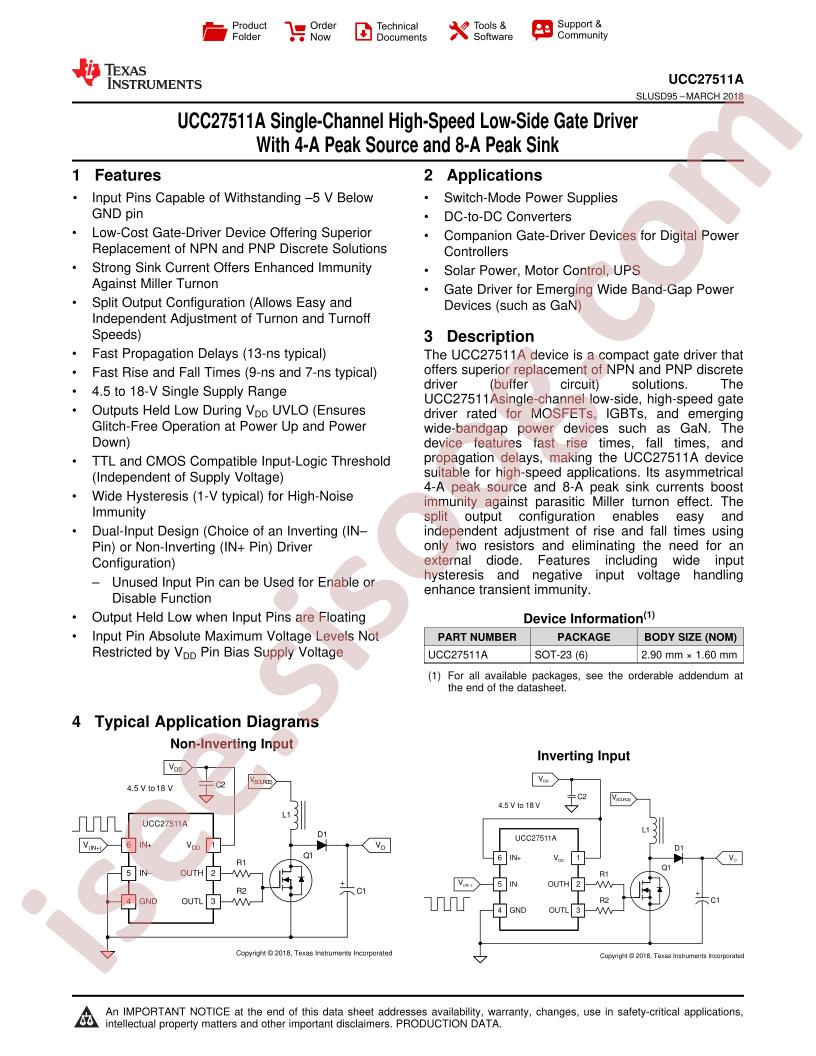

UCC27511A Datasheet دیتاشیت

UCC27511A Datasheet

مشخصات دیتاشیت

نام دیتاشیت UCC27511A Datasheet
حجم فایل 964.659 کیلوبایت
نوع فایل pdf
تعداد صفحات 32

مشاهده دیتاشیت UCC27511A Datasheet

دانلود دیتاشیت

سایر مستندات

UCC27511ADBVT 32 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Texas Instruments UCC27511ADBVT
  • Fall Time: 7ns
  • Load Type: IGBT;MOSFET
  • Rise Time: 8ns
  • Supply Voltage: 4.5V~18V
  • Number of Drivers: 1
  • Driven Configuration: Low Side
  • Operating Temperature: -40°C~+140°C@(Tj)
  • Peak Output Current(sink): 8A
  • Peak Output Current(source): 4A
  • Package: SOT-23-6
  • Manufacturer: Texas Instruments
  • Channel Type: Single
  • Gate Type: IGBT, N-Channel MOSFET
  • Rise / Fall Time (Typ): 8ns, 7ns
  • Supplier Device Package: SOT-23-6
  • Mounting Type: Surface Mount
  • Current - Peak Output (Source, Sink): 4A, 8A
  • Input Type: Inverting, Non-Inverting
  • Base Part Number: UCC275
  • Packaging: Cut Tape (CT)
  • Voltage - Supply: 4.5V ~ 18V
  • Series: -
  • Package / Case: SOT-23-6
  • Part Status: Active
  • Logic Voltage - VIL, VIH: 1V, 2.4V
  • detail: Low-Side Gate Driver IC Inverting, Non-Inverting SOT-23-6
