SN74LVTH374DWR دیتاشیت

مشخصات دیتاشیت

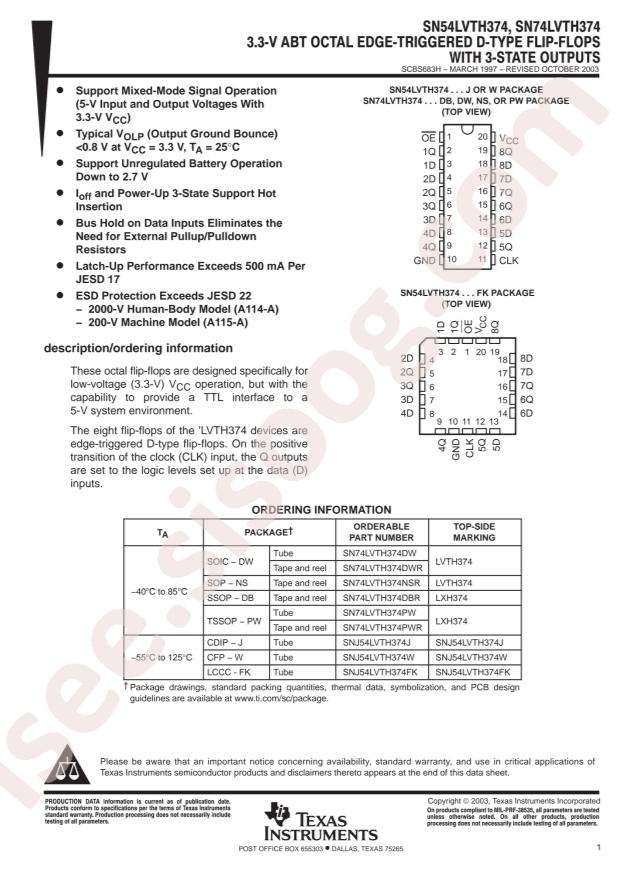

مشاهده دیتاشیت SN74LVTH374DWR	دانلود دیتاشیت

RoHS: true
Type: D-Type
Series: 74LVTH
Category: Logic ICs/Flip Flops
Function: Standard
Datasheet: Texas Instruments SN74LVTH374DWR
Output Type: Tri-State;Non-Inverted
Sink Current: 64mA
Trigger Type: 上升沿
Source Current: 32mA
Supply Voltage: 2.7V~3.6V
Clock Frequency: 150MHz
Input Capacitance: 3pF
Quiescent Current (Iq): 190uA
Maximum Propagation Delay: 4.5ns@3.3V,50pF
Package: SOP-20-300mil
Manufacturer: Texas Instruments
Number of Elements: 1
Operating Temperature: -40°C ~ 85°C (TA)
Supplier Device Package: 20-SOIC
Current - Output High, Low: 32mA, 64mA
Voltage - Supply: 2.7V ~ 3.6V
Current - Quiescent (Iq): 190µA
Mounting Type: Surface Mount
Packaging: Cut Tape (CT)
Number of Bits per Element: 8
Max Propagation Delay @ V, Max CL: 4.5ns @ 3.3V, 50pF
Base Part Number: SN74LVT
Part Status: Active
Package / Case: 20-SOIC (0.295", 7.50mm Width)
detail: Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-SOIC (0.295", 7.50mm Width)
