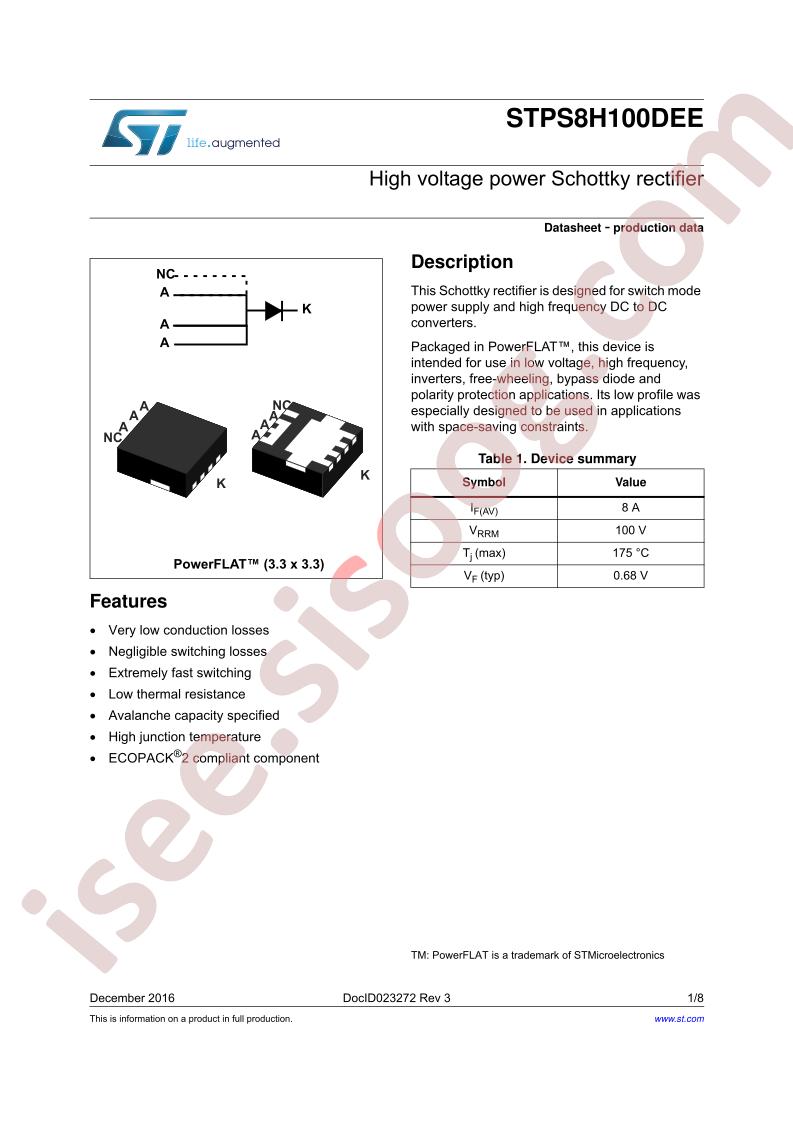

STPS8H100DEE دیتاشیت

STPS8H100DEE

مشخصات دیتاشیت

نام دیتاشیت STPS8H100DEE
حجم فایل 173.618 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

مشاهده دیتاشیت STPS8H100DEE

دانلود دیتاشیت

سایر مستندات

STPS8H100DEE-TR 7 pages

مشخصات فنی

  • RoHS: true
  • Category: Diodes/Schottky Barrier Diodes (SBD)
  • Datasheet: STMicroelectronics STPS8H100DEE-TR
  • Reverse Voltage (Vr): 100V
  • Forward Voltage (Vf@If): 820mV@8A
  • Average Rectified Current (Io): 8A
  • Package: PowerFLAT(3.3x3.3)
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 100V
  • Current - Average Rectified (Io): 8A
  • Voltage - Forward (Vf) (Max) @ If: 820mV @ 8A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr: 4.5µA @ 100V
  • Capacitance @ Vr, F: -
  • Mounting Type: Surface Mount
  • Package / Case: 8-PowerTDFN
  • Supplier Device Package: PowerFlat™ (3.3x3.3)
  • Operating Temperature - Junction: 175°C (Max)
  • Base Part Number: STPS8H
  • detail: Diode Schottky 100V 8A Surface Mount PowerFlat™ (3.3x3.3)
