L6566BH 数据手册
其他文档

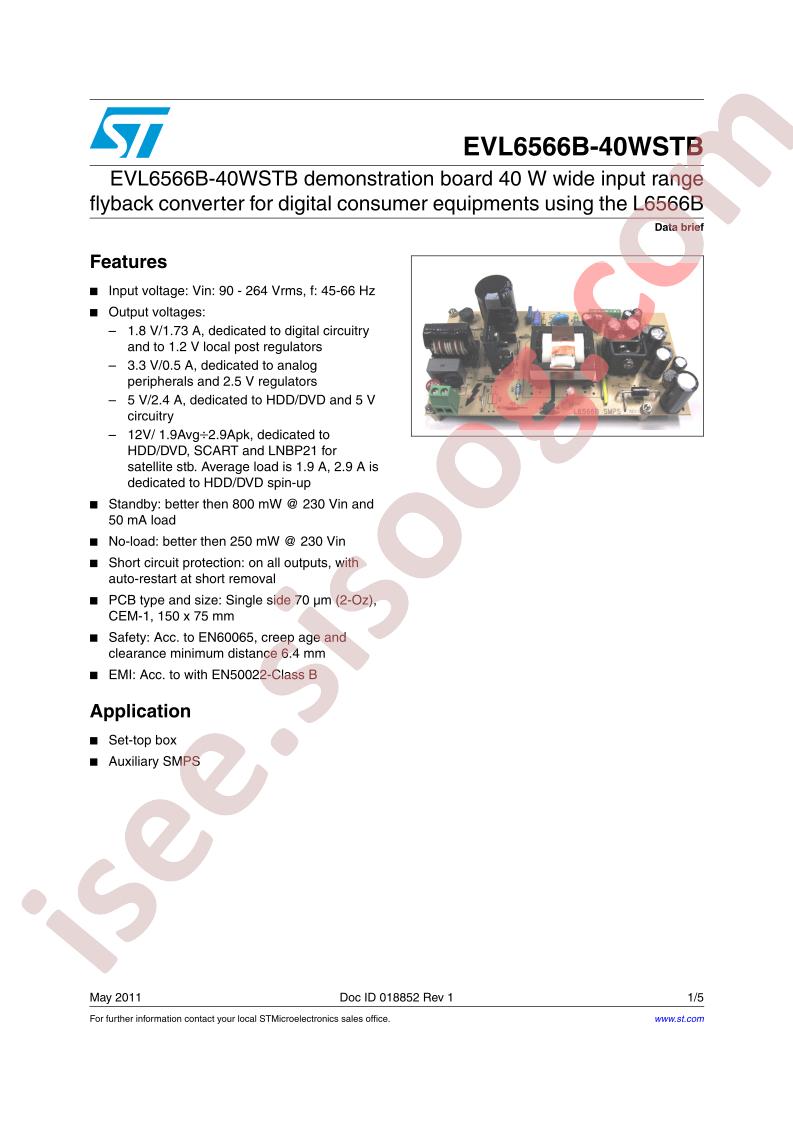

EVL6566B-40WSTB Data Brief 5 pages
EVL6566B-40WSTB Appl Note 34 pages
技术规格
- Manufacturer: STMicroelectronics
- Series: -
- Part Status: Active
- Main Purpose: AC/DC, Primary Side
- Outputs and Type: 4, Isolated
- Power - Output: 40W
- Voltage - Output: 5V, 12V, 1.8V, 3.3V
- Current - Output: 2.4A, 1.9A, 1.73A, 500mA
- Voltage - Input: 90 ~ 264 VAC
- Regulator Topology: Flyback
- Frequency - Switching: 62kHz
- Board Type: Fully Populated
- Supplied Contents: Board(s)
- Utilized IC / Part: L6566B
- detail: L6566B - AC/DC, Primary Side 4, Isolated Outputs Evaluation Board
