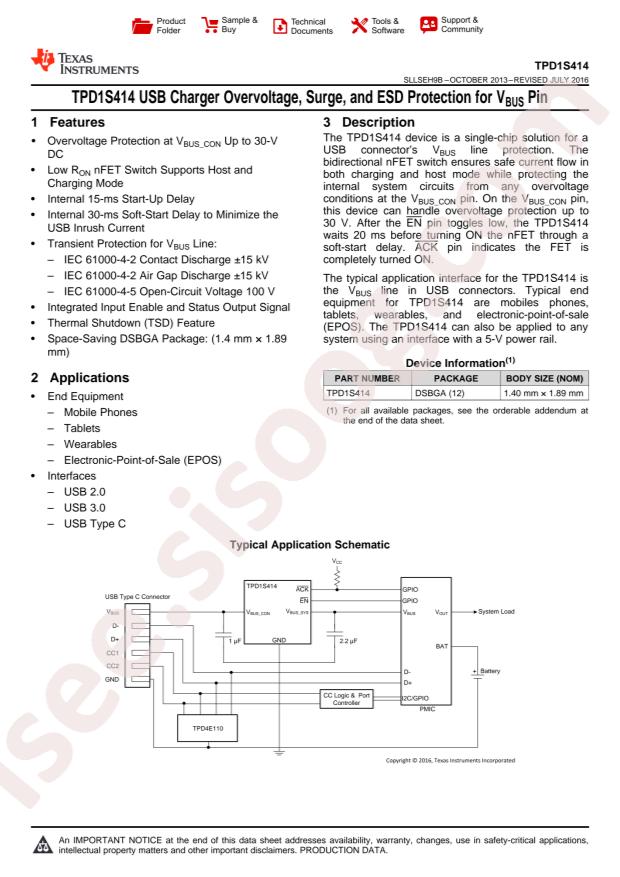

TPD1S414YZR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPD1S414YZR
|
|
حجم فایل
|
87.962
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
24
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/AC-DC Controllers & Regulators
-
Features:
Thermal Protection(OPT)
-
Datasheet:
Texas Instruments TPD1S414YZR
-
Supply Voltage:
-
-
Operating Temperature:
-40°C~+85°C@(Ta)
-
Package:
BGA-12
-
Manufacturer:
Texas Instruments
-
Series:
-
-
Output Configuration:
High Side
-
Output Type:
N-Channel
-
Fault Protection:
Over Temperature
-
Packaging:
Cut Tape (CT)
-
Ratio - Input:Output:
1:1
-
Input Type:
Non-Inverting
-
Current - Output (Max):
-
-
Voltage - Supply (Vcc/Vdd):
-
-
Switch Type:
USB Switch
-
Supplier Device Package:
12-DSBGA
-
Base Part Number:
TPD1S
-
Voltage - Load:
30V (Max)
-
Interface:
On/Off
-
Rds On (Typ):
39mOhm
-
Mounting Type:
Surface Mount
-
Package / Case:
12-UFBGA, DSBGA
-
Number of Outputs:
1
-
Part Status:
Active
-
detail:
Power Switch/Driver 1:1 N-Channel 12-DSBGA
