دیتاشیت TPS71733QDRVRQ1

مشخصات دیتاشیت

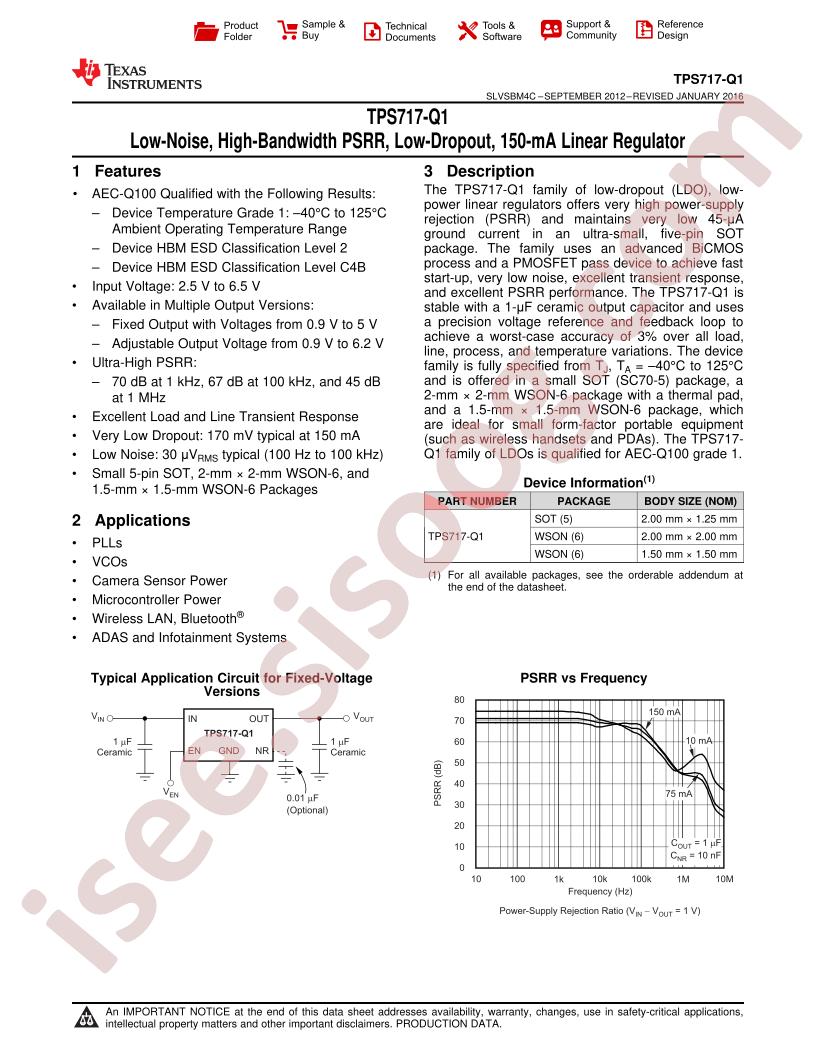

دانلود دیتاشیت TPS717xx-Q1 Datasheet	TPS717xx-Q1 Datasheet Datasheet

RoHS: true
Category: Power Supply Chip/Linear Voltage Regulators (LDO)
Datasheet: Texas Instruments TPS71733QDRVRQ1
Output Current: 150mA
Output Voltage: 3.3V
Dropout Voltage: 0.3V@(150mA)
Output Polarity: positive
Number of Outputs: 1
Maximum Input Voltage: 6.5V
Operating Temperature: -40°C~+125°C
Quiescent Current (Ground Current): 80uA
Package: DFN-6(2x2)
Manufacturer: Texas Instruments
Series: Automotive, AEC-Q100
Voltage - Output (Max): -
Output Configuration: Positive
Output Type: Fixed
Voltage Dropout (Max): 0.3V @ 150mA
Packaging: Cut Tape (CT)
Voltage - Output (Min/Fixed): 3.3V
Protection Features: Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
PSRR: 70dB ~ 45dB (100Hz ~ 1MHz)
Supplier Device Package: 6-WSON (2x2)
Current - Quiescent (Iq): 80µA
Base Part Number: TPS717
Mounting Type: Surface Mount
Number of Regulators: 1
Voltage - Input (Max): 6.5V
Current - Output: 150mA
Part Status: Active
Current - Supply (Max): 100µA
Control Features: Enable
Package / Case: 6-WDFN Exposed Pad
detail: Linear Voltage Regulator IC 1 Output 150mA 6-WSON (2x2)
