TLV3691 Datasheet Datasheet

TLV3691 Datasheet

Datasheet specifications

Datasheet's name TLV3691 Datasheet
File size 3398.859 KB
File type pdf
Number of pages 31

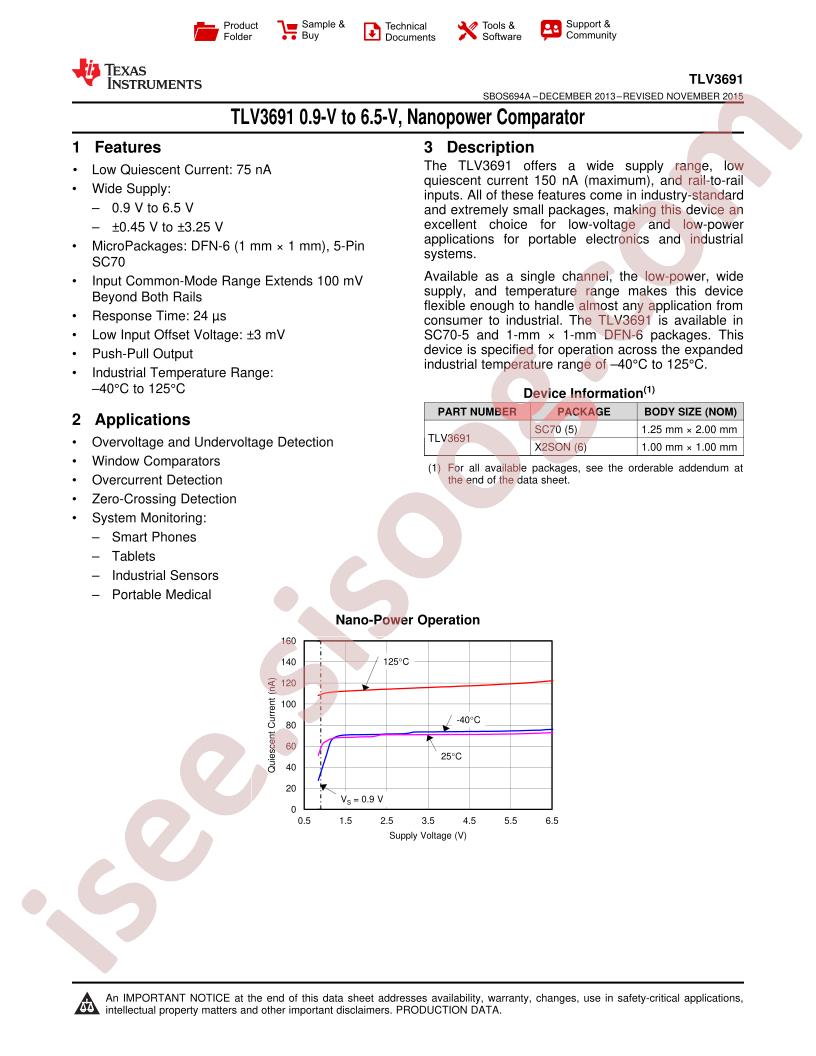

Download Datasheet TLV3691 Datasheet

Download Datasheet

Other documentations

Analog Signal Chain Guide 11 pages

TLV3691IDCKR 32 pages

Technical specifications

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Comparators
  • Datasheet: Texas Instruments TLV3691IDCKT
  • Output Type: 开集
  • Supply Voltage: 0.9V~6.5V;0.45V~3.25V
  • Number of Elements: -
  • Operating Temperature: -40°C~+125°C
  • Input Bias Current (Ib): 100pA
  • Input Offset Voltage (Vos): 3mV
  • Input Hysteresis Voltage (Vhys): -
  • Common Mode Rejection Ratio (CMRR): -
  • Package: SC-70-5
  • Manufacturer: Texas Instruments
  • Voltage - Input Offset (Max): 3mV
  • Type: General Purpose
  • Supplier Device Package: SC-70-5
  • Mounting Type: Surface Mount
  • Current - Quiescent (Max): 150nA
  • Propagation Delay (Max): 35µs
  • Current - Input Bias (Max): 100pA
  • Base Part Number: TLV369
  • Packaging: Tape & Reel (TR)
  • Hysteresis: -
  • Series: -
  • Current - Output (Typ): 42mA
  • CMRR, PSRR (Typ): -
  • Part Status: Active
  • Package / Case: 5-TSSOP, SC-70-5, SOT-353
  • Voltage - Supply, Single/Dual (±): 0.9V ~ 6.5V, ±0.45V ~ 3.25V
  • detail: Comparator General Purpose Push-Pull SC-70-5
