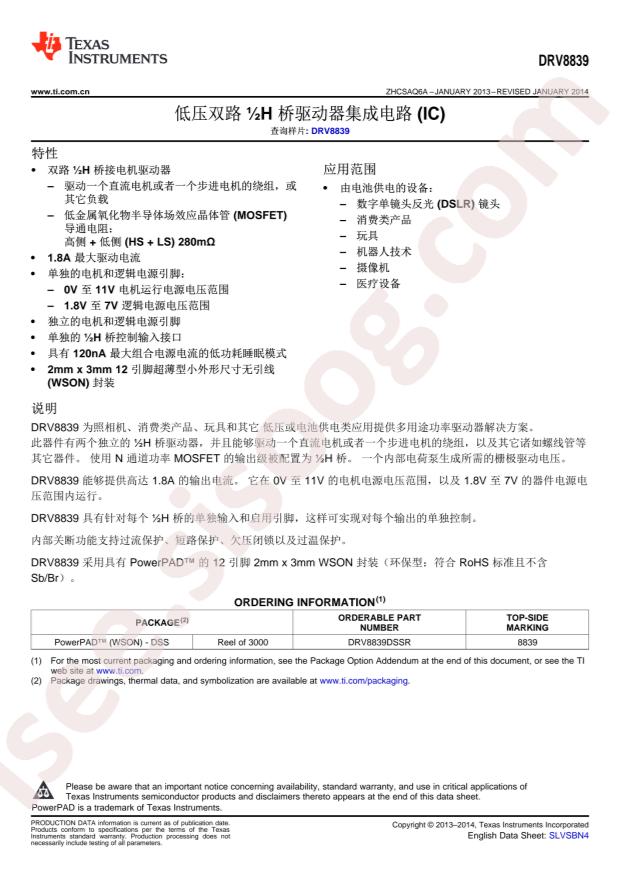

دیتاشیت DRV8839DSSR

DRV8839

مشخصات دیتاشیت

نام دیتاشیت DRV8839
حجم فایل 2099.934 کیلوبایت
نوع فایل pdf
تعداد صفحات 25

دانلود دیتاشیت DRV8839

DRV8839 Datasheet

مشخصات

  • RoHS: true
  • Type: Brush DC Motor
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: Texas Instruments DRV8839DSSR
  • Interface: Parallel
  • Output Current: 1.8A
  • Supply Voltage: 1.8V~7V
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Package: DFN-12(2x3)
  • Manufacturer: Texas Instruments
  • Motor Type - Stepper: Bipolar
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Supplier Device Package: 12-WSON (3x2)
  • Applications: Battery Powered
  • Step Resolution: -
  • Voltage - Load: 0V ~ 11V
  • Mounting Type: Surface Mount
  • Voltage - Supply: 1.8V ~ 7V
  • Packaging: Cut Tape (CT)
  • Motor Type - AC, DC: Brushed DC
  • Output Configuration: Half Bridge (2)
  • Series: -
  • Base Part Number: DRV8839
  • Package / Case: 12-WFDFN Exposed Pad
  • Current - Output: 1.8A
  • Part Status: Active
  • Technology: Power MOSFET
  • detail: Bipolar Motor Driver Power MOSFET Parallel 12-WSON (3x2)
