- دیتاشیت UCC27424DR

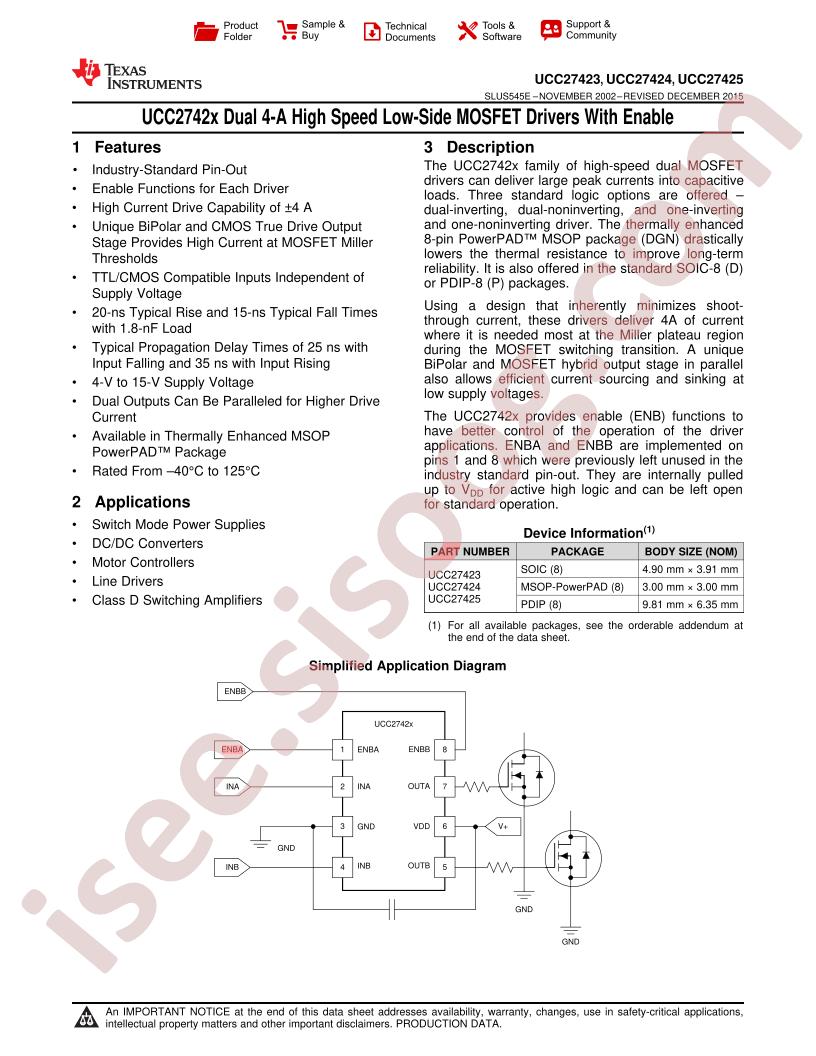

UCC27424DR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | UCC27424DR |
|---|---|
| حجم فایل | 1909.044 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 34 |
دانلود دیتاشیت UCC27424DR |
دانلود دیتاشیت |
|---|
سایر مستندات
UCC27425DGN 34 pages
UCC27423-25 39 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Gate Drive ICs
- Datasheet: Texas Instruments UCC27424DR
- Fall Time: 15ns
- Load Type: MOSFET
- Rise Time: 20ns
- Supply Voltage: 4V~15V
- Number of Drivers: 2
- Driven Configuration: Low Side
- Operating Temperature: -40°C~+125°C@(Ta)
- Peak Output Current(sink): 4A
- Peak Output Current(source): 4A
- Package: SOP-8
- Manufacturer: Texas Instruments
- Channel Type: Independent
- Gate Type: N-Channel, P-Channel MOSFET
- Rise / Fall Time (Typ): 20ns, 15ns
- Supplier Device Package: 8-SOIC
- Mounting Type: Surface Mount
- Current - Peak Output (Source, Sink): 4A, 4A
- Input Type: Non-Inverting
- Base Part Number: UCC274
- Packaging: Cut Tape (CT)
- Voltage - Supply: 4V ~ 15V
- Series: -
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Part Status: Active
- Logic Voltage - VIL, VIH: 1V, 2V
- detail: Low-Side Gate Driver IC Non-Inverting 8-SOIC
