VIPER013LSTR دیتاشیت

VIPER013LSTR

مشخصات دیتاشیت

نام دیتاشیت VIPER013LSTR
حجم فایل 72.186 کیلوبایت
نوع فایل pdf
تعداد صفحات 36

دانلود دیتاشیت VIPER013LSTR

دانلود دیتاشیت

سایر مستندات

VIPer01x Datasheet 36 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/AC-DC Controllers & Regulators
  • Topology: Step-down;Step-down-Boost;Flyback
  • Datasheet: STMicroelectronics VIPER013LSTR
  • Duty Cycle: 80%
  • Supply Voltage: 4.5V~30V
  • Breakdown Voltage: 800V
  • Switching Frequency: 60kHz
  • Operating Temperature: -40°C~+150°C@(Tj)

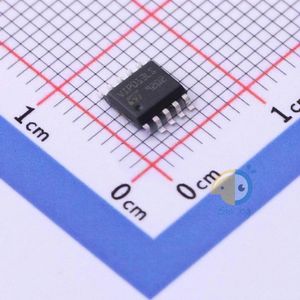

  • Package: SOP-10
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Isolation: Either
  • Internal Switch(s): Yes
  • Voltage - Breakdown: 800V
  • Voltage - Start Up: 8V
  • Voltage - Supply (Vcc/Vdd): 4.5V ~ 30V
  • Frequency - Switching: 60kHz
  • Power (Watts): 7W
  • Fault Protection: Current Limiting, Over Temperature, Over Voltage, Short Circuit
  • Control Features: -
  • Package / Case: 10-SOP (0.154", 3.90mm Width)
  • Supplier Device Package: 10-SSO
  • Mounting Type: Surface Mount
  • Base Part Number: VIPER01
  • detail: Converter Offline Buck, Buck-Boost, Flyback Topology 60kHz 10-SSO
