STD8N60DM2 Datasheet دیتاشیت

STD8N60DM2 Datasheet

مشخصات دیتاشیت

نام دیتاشیت STD8N60DM2 Datasheet
حجم فایل 386.71 کیلوبایت
نوع فایل pdf
تعداد صفحات 17

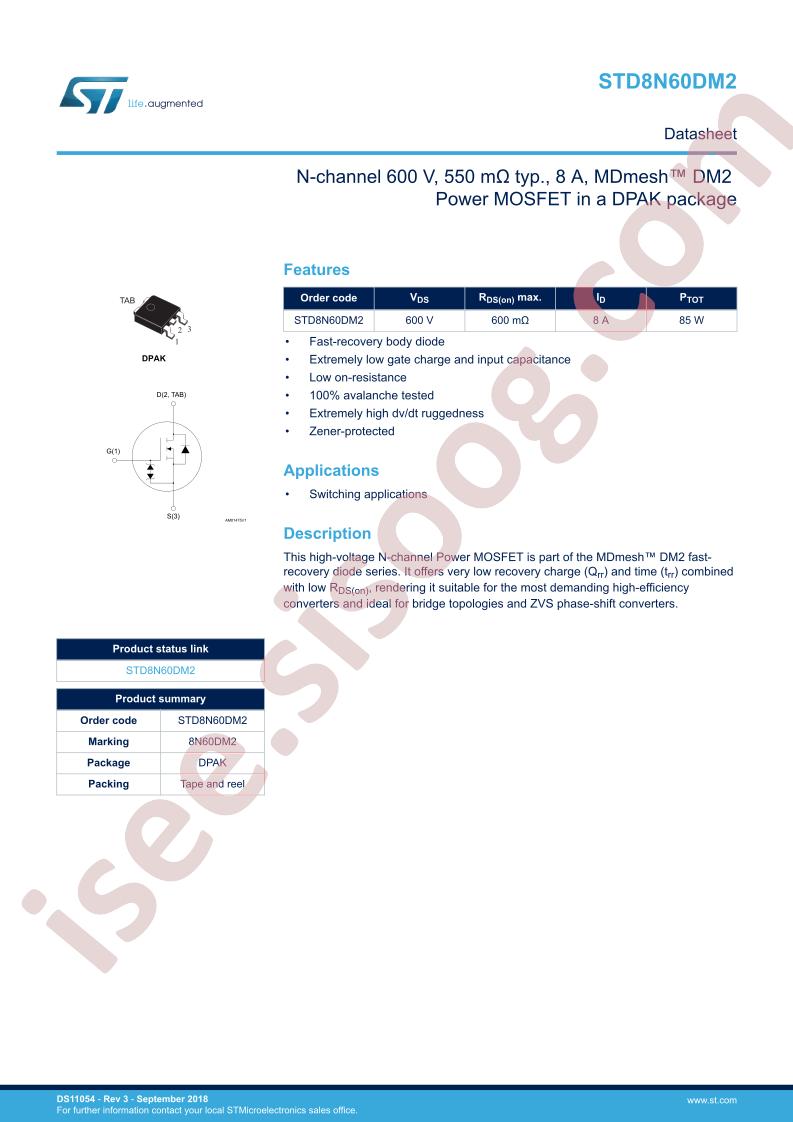

مشاهده دیتاشیت STD8N60DM2 Datasheet

دانلود دیتاشیت

سایر مستندات

STD8N60DM2 17 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STD8N60DM2
  • Power Dissipation (Pd): 85W
  • Total Gate Charge (Qg@Vgs): 13.5nC@10V
  • Drain Source Voltage (Vdss): 600V
  • Input Capacitance (Ciss@Vds): 375pF@100V
  • Continuous Drain Current (Id): 8A
  • Gate Threshold Voltage (Vgs(th)@Id): 5V@100uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 600mΩ@10V,4A
  • Package: TO-252
  • Manufacturer: STMicroelectronics
  • Series: MDmesh™ DM2
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 600V
  • Current - Continuous Drain (Id) @ 25°C: 8A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 600mOhm @ 4A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 100µA
  • Gate Charge (Qg) (Max) @ Vgs: 13.5nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 375pF @ 100V
  • FET Feature: -
  • Power Dissipation (Max): 85W (Tc)
  • Operating Temperature: 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: DPAK
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Base Part Number: STD8N
  • detail: N-Channel 600V 8A (Tc) 85W (Tc) Surface Mount DPAK
