دیتاشیت LP3996QSD-1833/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LP3996QSD(X)-1833/NOPB |
|---|---|
| حجم فایل | 1219.042 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |

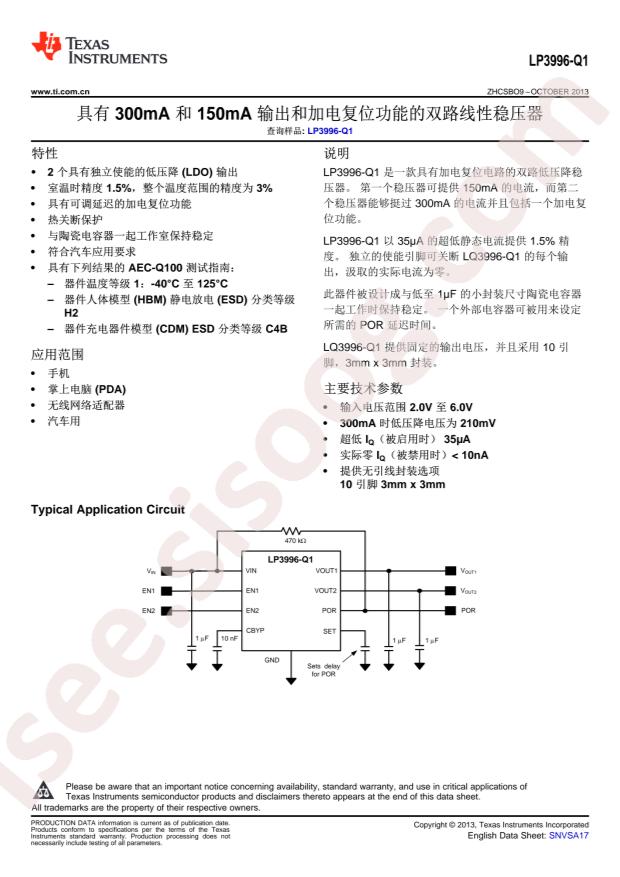

دانلود دیتاشیت LP3996QSD(X)-1833/NOPB |
LP3996QSD(X)-1833/NOPB Datasheet |
|---|
مشخصات
- Series: Automotive, AEC-Q100
- Voltage - Output (Max): -
- Output Configuration: Positive
- Output Type: Fixed
- Voltage Dropout (Max): 0.22V @ 150mA, 0.55V @ 150mA
- Packaging: Cut Tape (CT)
- Voltage - Output (Min/Fixed): 1.8V, 3.3V
- Protection Features: Over Temperature, Short Circuit
- PSRR: 58dB ~ 45dB, 70dB ~ 60dB (1kHz ~ 20kHz)
- Manufacturer: Texas Instruments
- Supplier Device Package: 10-WSON (3x3)
- Current - Quiescent (Iq): 100µA
- Base Part Number: LP3996
- Mounting Type: Surface Mount
- Operating Temperature: -40°C ~ 85°C
- Number of Regulators: 2
- Voltage - Input (Max): 6V
- Current - Output: 150mA, 300mA
- Part Status: Active
- Current - Supply (Max): 170µA
- Control Features: Enable
- Package / Case: 10-WFDFN Exposed Pad
- detail: Linear Voltage Regulator IC 2 Output 150mA, 300mA 10-WSON (3x3)
