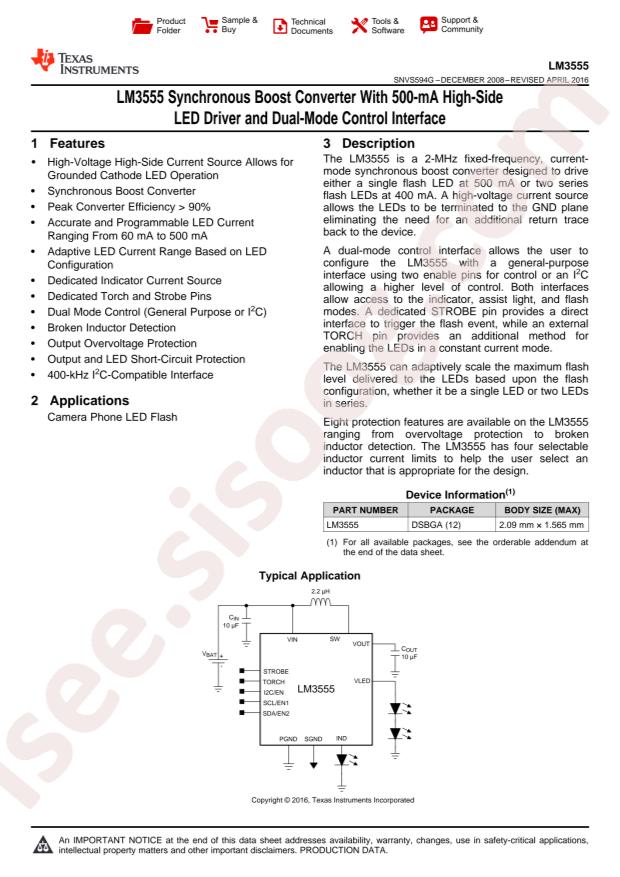

- دیتاشیت LM3555TLE/NOPB
LM3555TLE/NOPB دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | LM3555TLE/NOPB |
|---|---|
| حجم فایل | 97.24 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 38 |
دانلود دیتاشیت LM3555TLE/NOPB |
دانلود دیتاشیت |
|---|
سایر مستندات
LM3555 Product Brief 38 pages
مشخصات فنی
- RoHS: true
- Type: DC-DCVoltage Stabilizer
- Dimming: I2C
- Category: Nixie Tube Driver/LED Driver/LED Drivers
- Channels: 1
- Topology: boost converter
- Datasheet: Texas Instruments LM3555TLE/NOPB
- Input Voltage: 2.5V~5.5V
- Output Current: 500mA
- Output Voltage: 9.96V
- Switch Frequency: 2MHz
- Operating temperature: -30°C~+85°C
- Package: BGA-12
- Manufacturer: Texas Instruments
- Current - Output / Channel: 500mA (Flash)
- Internal Switch(s): Yes
- Supplier Device Package: 12-TµSMD (1.58x2.1)
- Voltage - Supply (Min): 2.5V
- Applications: Camera Flash
- Voltage - Supply (Max): 5.5V
- Mounting Type: Surface Mount
- Base Part Number: LM3555
- Packaging: Cut Tape (CT)
- Voltage - Output: 9.96V
- Series: -
- Package / Case: 12-WFBGA
- Number of Outputs: 1
- Part Status: Active
- Frequency: 2MHz
- detail: LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) I²C Dimming 500mA (Flash) 12-TµSMD (1.58x2.1)
