دیتاشیت STP40NF20

STx40NF20

مشخصات دیتاشیت

نام دیتاشیت STx40NF20
حجم فایل 489.015 کیلوبایت
نوع فایل pdf
تعداد صفحات 17

دانلود دیتاشیت STx40NF20

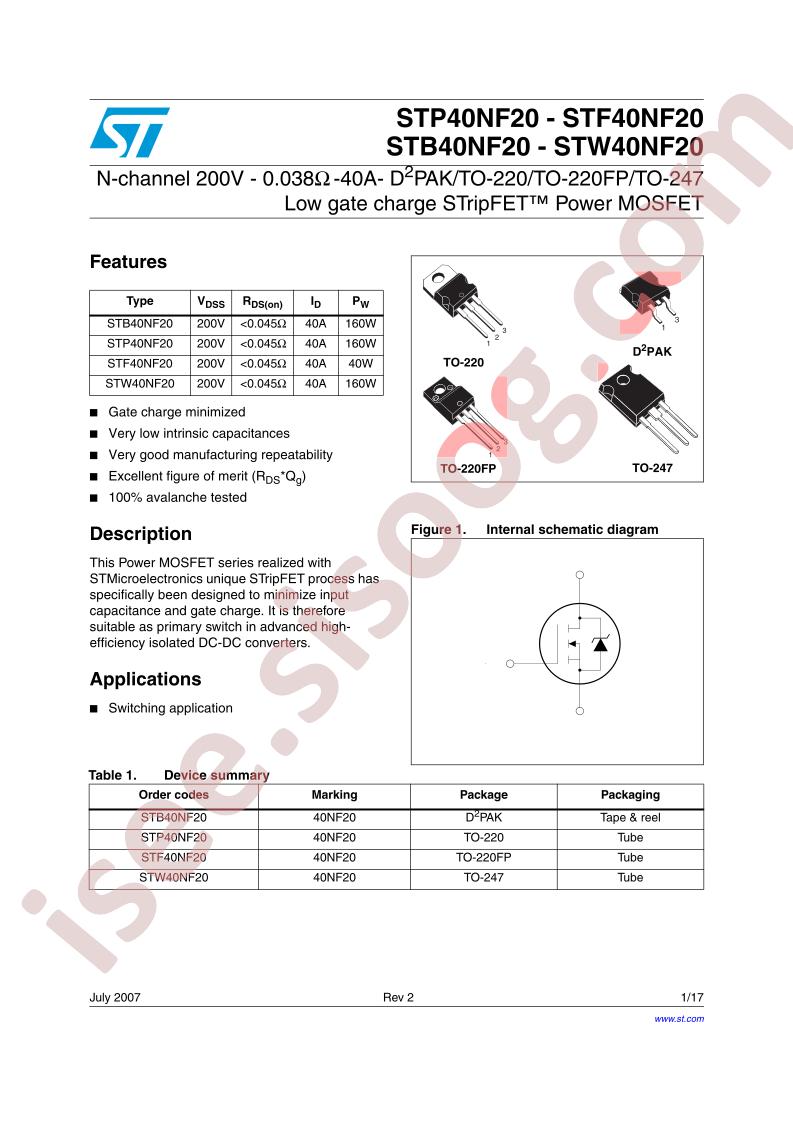

STx40NF20 Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: STripFET™
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 200V
  • Current - Continuous Drain (Id) @ 25°C: 40A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 45mOhm @ 20A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 75nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 2500pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 160W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220AB
  • Package / Case: TO-220-3
  • Base Part Number: STP40N
  • detail: N-Channel 200V 40A (Tc) 160W (Tc) Through Hole TO-220AB
