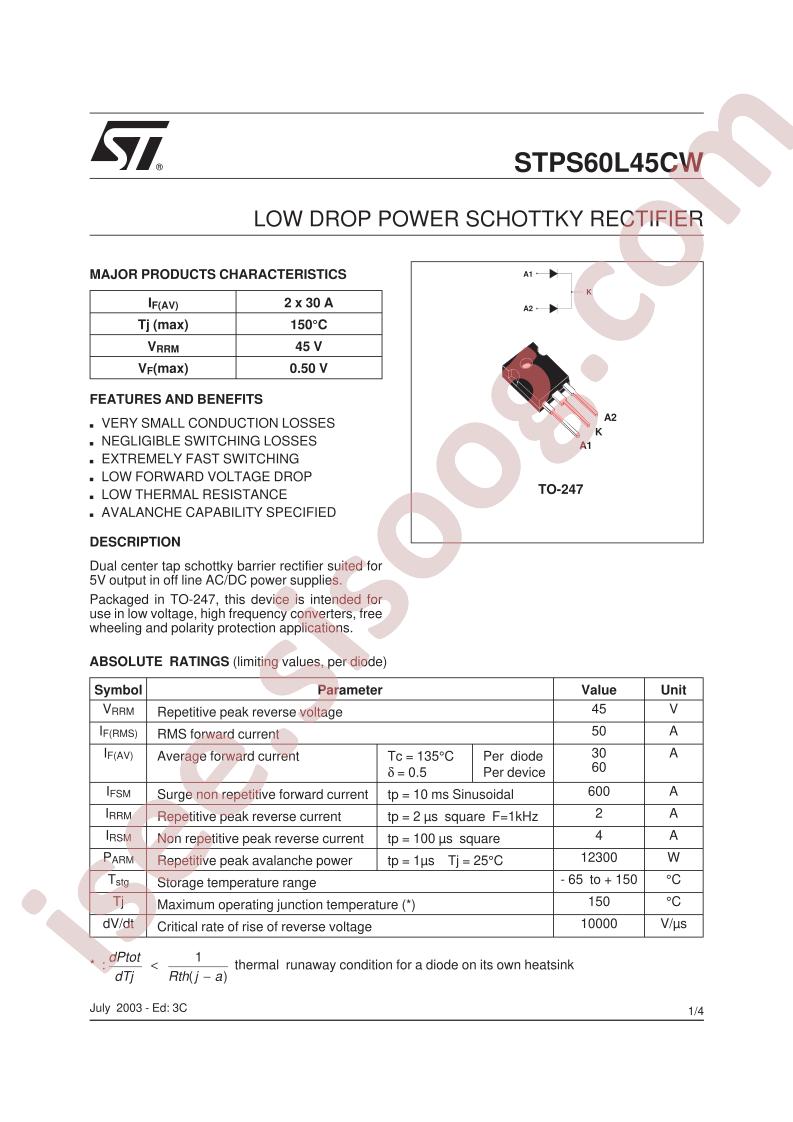

STPS60L45CW Datasheet
Datasheet specifications
| Datasheet's name | STPS60L45CW |
|---|---|
| File size | 68.418 KB |
| File type | |
| Number of pages | 4 |
Download Datasheet STPS60L45CW |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Tube
- Part Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 45V
- Current - Average Rectified (Io) (per Diode): 30A
- Voltage - Forward (Vf) (Max) @ If: 550mV @ 30A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr: 1.5mA @ 45V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
- Base Part Number: STPS60
- detail: Diode Array 1 Pair Common Cathode Schottky 45V 30A Through Hole TO-247-3
