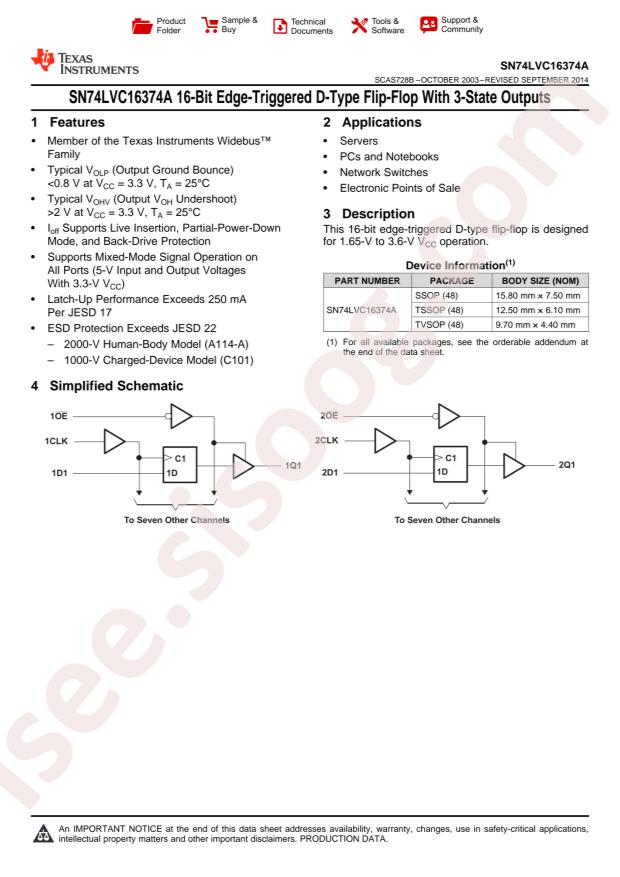

- دیتاشیت SN74LVC16374ADGVR
SN74LVC16374ADGVR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN74LVC16374ADGVR |
|---|---|
| حجم فایل | 70.483 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 26 |
دانلود دیتاشیت SN74LVC16374ADGVR |
دانلود دیتاشیت |
|---|
سایر مستندات
SN74LVC16374A 26 pages
مشخصات فنی
- RoHS: true
- Category: Logic ICs/Flip Flops
- Datasheet: Texas Instruments SN74LVC16374ADGVR
- Package: TVSOP-48
- Manufacturer: Texas Instruments
- Number of Elements: 2
- Operating Temperature: -40°C ~ 85°C (TA)
- Function: Standard
- Supplier Device Package: 48-TVSOP
- Input Capacitance: 5pF
- Current - Output High, Low: 24mA, 24mA
- Voltage - Supply: 1.65V ~ 3.6V
- Current - Quiescent (Iq): 20µA
- Output Type: Tri-State, Non-Inverted
- Mounting Type: Surface Mount
- Type: D-Type
- Packaging: Cut Tape (CT)
- Number of Bits per Element: 8
- Trigger Type: Positive Edge
- Series: 74LVC
- Max Propagation Delay @ V, Max CL: 4.5ns @ 3.3V, 50pF
- Clock Frequency: 150MHz
- Base Part Number: SN74LVC16
- Part Status: Active
- Package / Case: 48-TFSOP (0.173", 4.40mm Width)
- detail: Flip Flop 2 Element D-Type 8 Bit Positive Edge 48-TFSOP (0.173", 4.40mm Width)
