STPSC20H12WL دیتاشیت

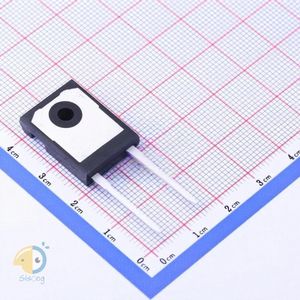

STPSC20H12WL

مشخصات دیتاشیت

نام دیتاشیت STPSC20H12WL
حجم فایل 54.296 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

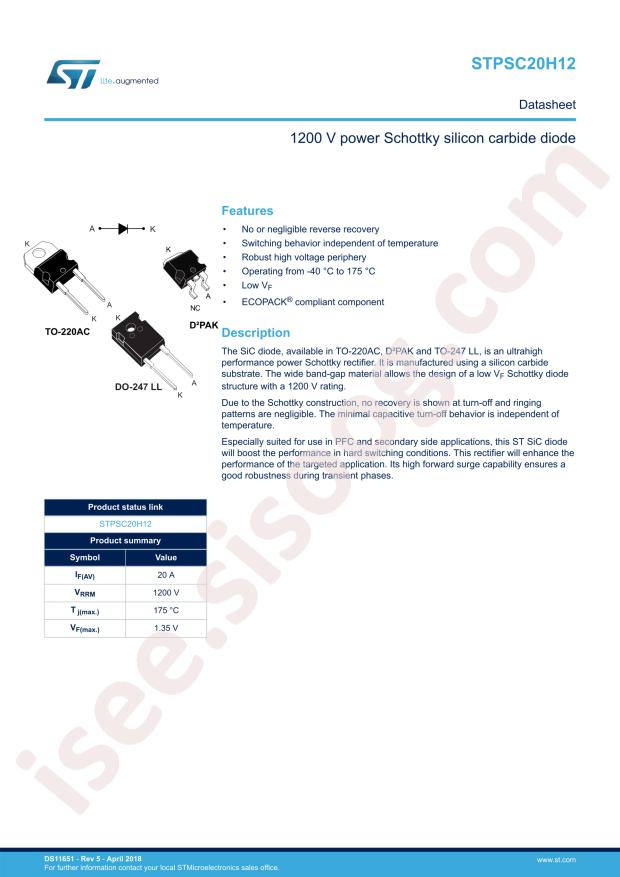

مشاهده دیتاشیت STPSC20H12WL

دانلود دیتاشیت

سایر مستندات

Diodes and Rectifiers Selection Guide 28 pages

STPSC20H12 Datasheet 15 pages

مشخصات فنی

  • RoHS: true
  • Category: Diodes/Schottky Barrier Diodes (SBD)
  • Datasheet: STMicroelectronics STPSC20H12WL
  • Diode Configuration: Single
  • Reverse Voltage (Vr): 1.2kV
  • Forward Voltage (Vf@If): 1.35V@20A
  • Reverse Leakage Current (Ir): 10uA@1.2kV
  • Average Rectified Current (Io): 20A
  • Package: DO-247-2
  • Manufacturer: STMicroelectronics
  • Series: ECOPACK®2
  • Packaging: Tube
  • Part Status: Active
  • Diode Type: Silicon Carbide Schottky
  • Voltage - DC Reverse (Vr) (Max): 1200V
  • Current - Average Rectified (Io): 20A
  • Voltage - Forward (Vf) (Max) @ If: 1.5V @ 20A
  • Speed: No Recovery Time > 500mA (Io)
  • Reverse Recovery Time (trr): 0ns
  • Current - Reverse Leakage @ Vr: 120µA @ 1200V
  • Capacitance @ Vr, F: 1650pF @ 0V, 1MHz
  • Mounting Type: Through Hole
  • Package / Case: DO-247-2 (Straight Leads)
  • Supplier Device Package: DO-247
  • Operating Temperature - Junction: -40°C ~ 175°C
  • Base Part Number: STPSC20
  • detail: Diode Silicon Carbide Schottky 1200V 20A Through Hole DO-247
