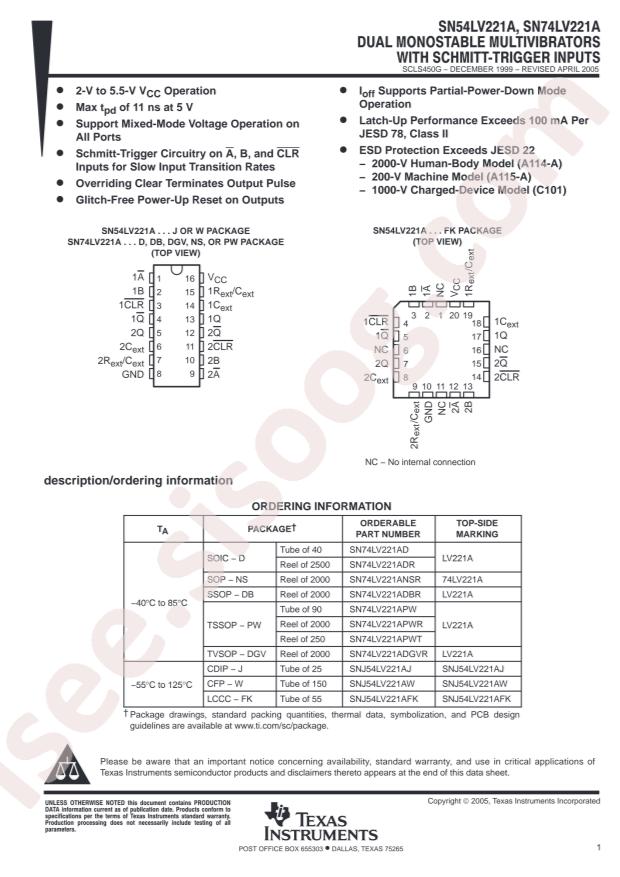

SN74LV221ADR دیتاشیت

SN74LV221ADR

مشخصات دیتاشیت

نام دیتاشیت SN74LV221ADR
حجم فایل 84.416 کیلوبایت
نوع فایل pdf
تعداد صفحات 23

دانلود دیتاشیت SN74LV221ADR

دانلود دیتاشیت

سایر مستندات

SN54LV221A, SN74LV221A 24 pages

مشخصات فنی

  • RoHS: true
  • Category: Logic ICs/Monostable Multivibrators
  • Datasheet: Texas Instruments SN74LV221ADR
  • Input Type: Schmitt Trigger
  • Logic Family: 74LV
  • Sink Current: 12mA
  • Source Current: 12mA
  • Supply Voltage: 2V~5.5V
  • Logic Gate Type: Monostable
  • Propagation Delay: 13.2ns
  • Number Of Channels: 2
  • OperatingTemperature: -40°C~+85°C
  • Package: SOP-16
  • Manufacturer: Texas Instruments
  • Base Part Number: SN74LV22
  • Supplier Device Package: 16-SOIC
  • Schmitt Trigger Input: Yes
  • Package / Case: 16-SOIC (0.154", 3.90mm Width)
  • Series: 74LV
  • Mounting Type: Surface Mount
  • Packaging: Cut Tape (CT)
  • Operating Temperature: -40°C ~ 85°C
  • Current - Output High, Low: 12mA, 12mA
  • Independent Circuits: 2
  • Part Status: Active
  • Logic Type: Monostable
  • Voltage - Supply: 2V ~ 5.5V
  • detail: Monostable Multivibrator 13.2ns 16-SOIC
