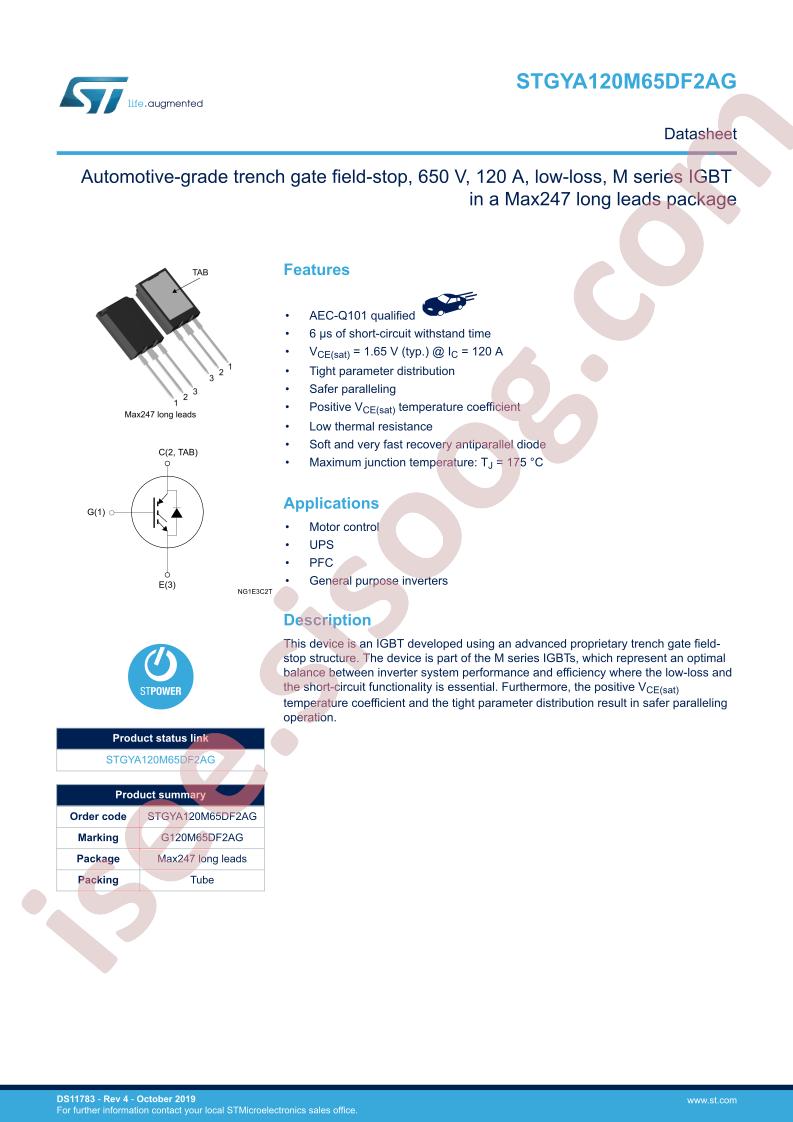

STGYA120M65DF2AG دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STGYA120M65DF2AG
|
|
حجم فایل
|
560.076
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
14
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
M
-
Packaging:
Tube
-
Part Status:
Active
-
IGBT Type:
Trench Field Stop
-
Voltage - Collector Emitter Breakdown (Max):
650V
-
Current - Collector (Ic) (Max):
160A
-
Current - Collector Pulsed (Icm):
360A
-
Vce(on) (Max) @ Vge, Ic:
2.15V @ 15V, 120A
-
Power - Max:
625W
-
Switching Energy:
1.8mJ (on), 4.41mJ (off)
-
Input Type:
Standard
-
Gate Charge:
420nC
-
Td (on/off) @ 25°C:
66ns/185ns
-
Test Condition:
400V, 120A, 4.7Ohm, 15V
-
Reverse Recovery Time (trr):
202ns
-
Operating Temperature:
-55°C ~ 175°C (TJ)
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-3
-
Supplier Device Package:
MAX247™
-
Base Part Number:
STGYA120
-
detail:
IGBT Trench Field Stop 650V 160A 625W Through Hole MAX247™
