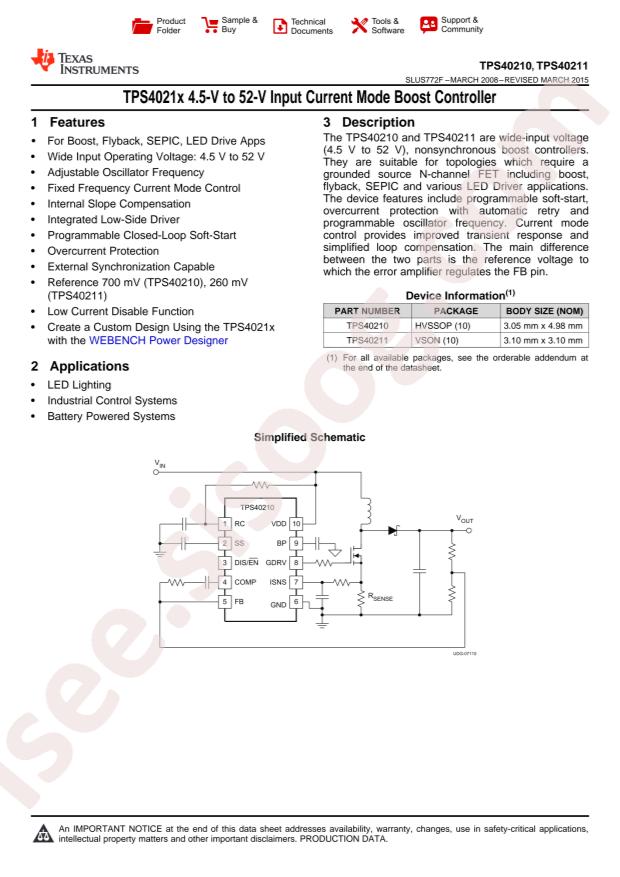

TPS40211DGQR 数据手册
其他文档
TPS40210, TPS40211 55 pages
技术规格
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: boost converterType;Buck-boost type
- Topology: Boost;Flyback;SEPIC
- Datasheet: Texas Instruments TPS40211DGQR
- Input Voltage: 4.5V~52V
- Number of Outputs: 1
- Switching Frequency: 1MHz
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: MSOP-10-EP
- Manufacturer: Texas Instruments
- Output Phases: 1
- Series: -
- Output Configuration: Positive
- Output Type: Transistor Driver
- Clock Sync: Yes
- Packaging: Cut Tape (CT)
- Synchronous Rectifier: No
- Voltage - Supply (Vcc/Vdd): 4.5V ~ 52V
- Supplier Device Package: 10-MSOP-PowerPad
- Duty Cycle (Max): -
- Serial Interfaces: -
- Frequency - Switching: 35kHz ~ 1MHz
- Mounting Type: Surface Mount
- Base Part Number: TPS402
- Part Status: Active
- Control Features: Enable, Frequency Control, Soft Start
- Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
- detail: Boost, Flyback, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 10-MSOP-PowerPad
