دیتاشیت TPS7B8250QDRVRQ1
مشخصات دیتاشیت
| نام دیتاشیت | TPS7B82-Q1 Datasheet |
|---|---|
| حجم فایل | 2223.292 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 31 |

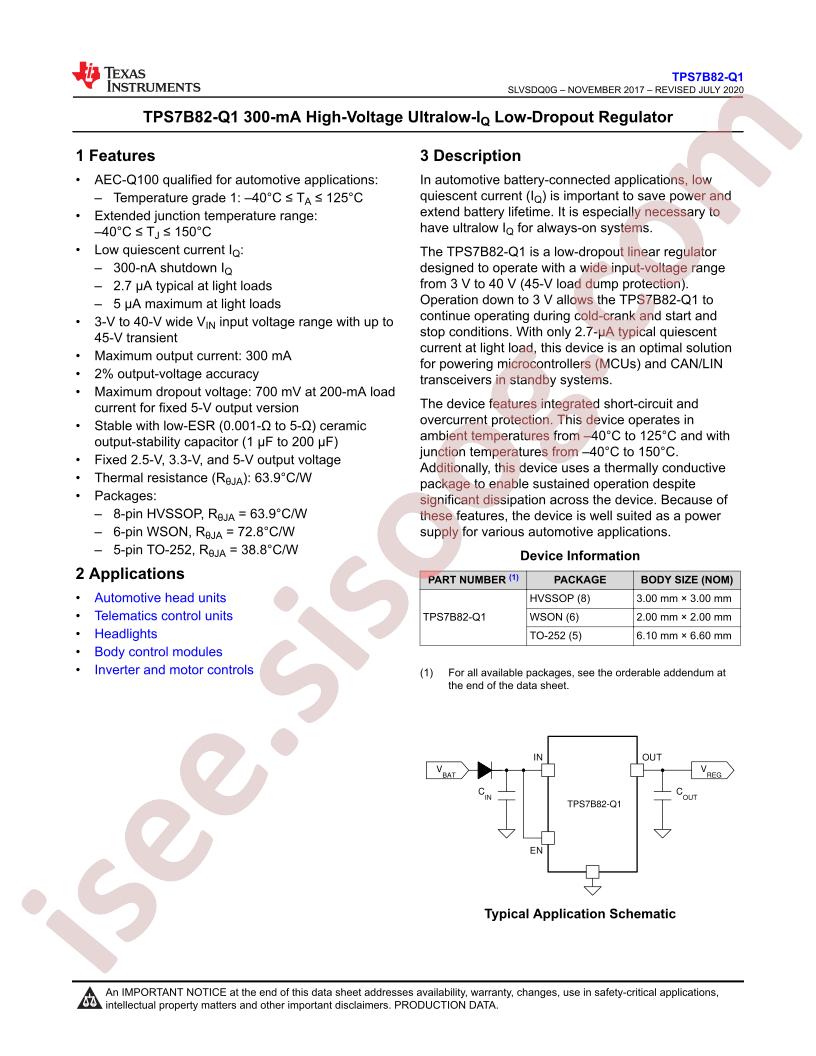

دانلود دیتاشیت TPS7B82-Q1 Datasheet |
TPS7B82-Q1 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments TPS7B8250QDRVRQ1
- Output Current: 300mA
- Output Voltage: 3.3V;5V
- Dropout Voltage: 1.35V@(300mA);1.17V@(300mA)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 40V
- Operating Temperature: -40°C~+150°C@(Tj)
- Quiescent Current (Ground Current): 3.5uA
- Power Supply Rejection Ratio (PSRR): 60dB@(100Hz)
- Package: DFN-6(2x2)
- Manufacturer: Texas Instruments
- Base Part Number: TPS7B8
- Supplier Device Package: 6-WSON (2x2)
- Voltage - Output (Max): -
- Output Configuration: Positive
- Current - Quiescent (Iq): 3.5µA
- Output Type: Fixed
- PSRR: 60dB (100Hz)
- Voltage Dropout (Max): 1.35V @ 300mA, 1.17V @ 300mA
- Number of Regulators: 1
- Mounting Type: Surface Mount
- Packaging: Cut Tape (CT)
- Voltage - Output (Min/Fixed): 3.3V, 5V
- Protection Features: Over Current, Over Temperature, Short Circuit
- Series: Automotive, AEC-Q100
- Voltage - Input (Max): 40V
- Current - Output: 300mA
- Part Status: Active
- Package / Case: 6-WDFN Exposed Pad
- Control Features: Enable
- detail: Linear Voltage Regulator IC 1 Output 300mA 6-WSON (2x2)
