دیتاشیت TPL9201PWPR

TPL9201

مشخصات دیتاشیت

نام دیتاشیت TPL9201
حجم فایل 958.501 کیلوبایت
نوع فایل pdf
تعداد صفحات 21

دانلود دیتاشیت TPL9201

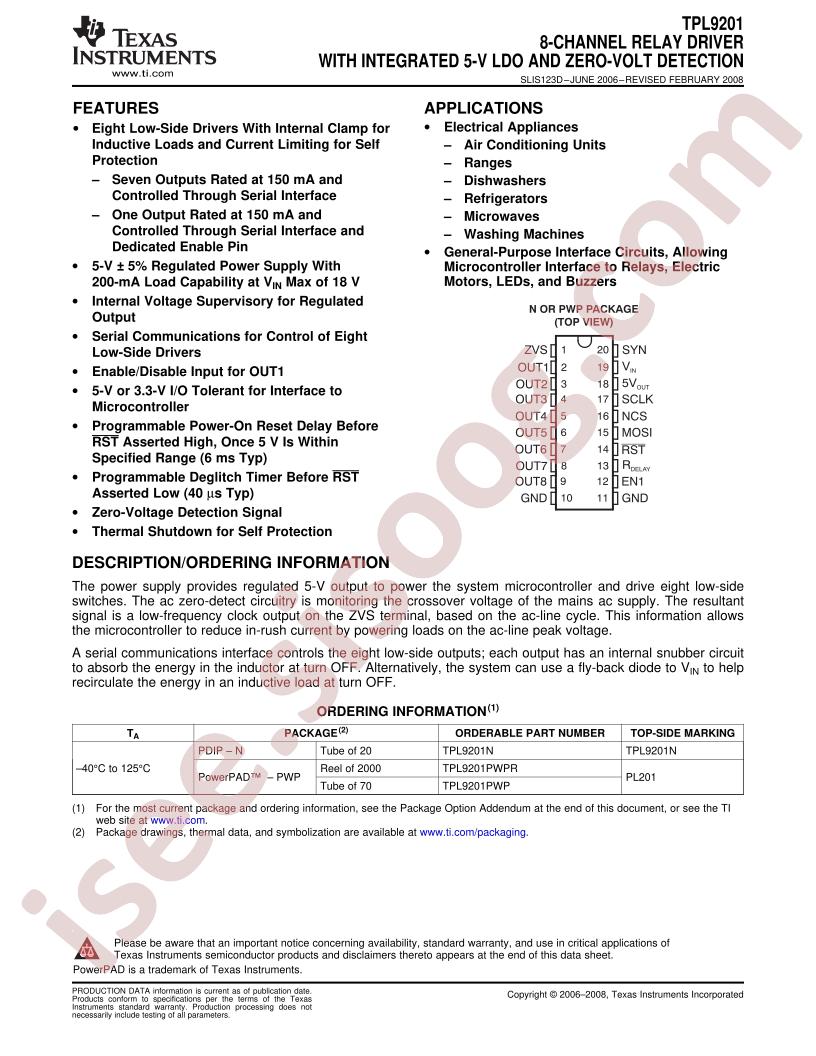

TPL9201 Datasheet

مشخصات

  • RoHS: true
  • Category: Logic ICs/Buffer/Driver/Transceiver
  • Datasheet: Texas Instruments TPL9201PWPR
  • Package: TSSOP-20-EP
  • Manufacturer: Texas Instruments
  • Series: -
  • Output Configuration: Low Side
  • Output Type: N-Channel
  • Fault Protection: Current Limiting (Fixed), Over Temperature
  • Packaging: Cut Tape (CT)
  • Ratio - Input:Output: 1:8
  • Input Type: Non-Inverting
  • Current - Output (Max): 150mA
  • Voltage - Supply (Vcc/Vdd): 0V ~ 5.25V
  • Switch Type: General Purpose
  • Supplier Device Package: 20-HTSSOP
  • Base Part Number: TPL9201
  • Features: -
  • Voltage - Load: 7V ~ 18V
  • Interface: Serial
  • Rds On (Typ): -
  • Mounting Type: Surface Mount
  • Package / Case: 20-PowerTSSOP (0.173", 4.40mm Width)
  • Number of Outputs: 8
  • Part Status: Active
  • Operating Temperature: -40°C ~ 125°C (TA)
  • detail: Power Switch/Driver 1:8 N-Channel 150mA 20-HTSSOP
