دیتاشیت STQ1NC45R-AP

STD2NC45-1,STQ1NC45R-Ap

مشخصات دیتاشیت

نام دیتاشیت STD2NC45-1,STQ1NC45R-Ap
حجم فایل 332.071 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

دانلود دیتاشیت STD2NC45-1,STQ1NC45R-Ap

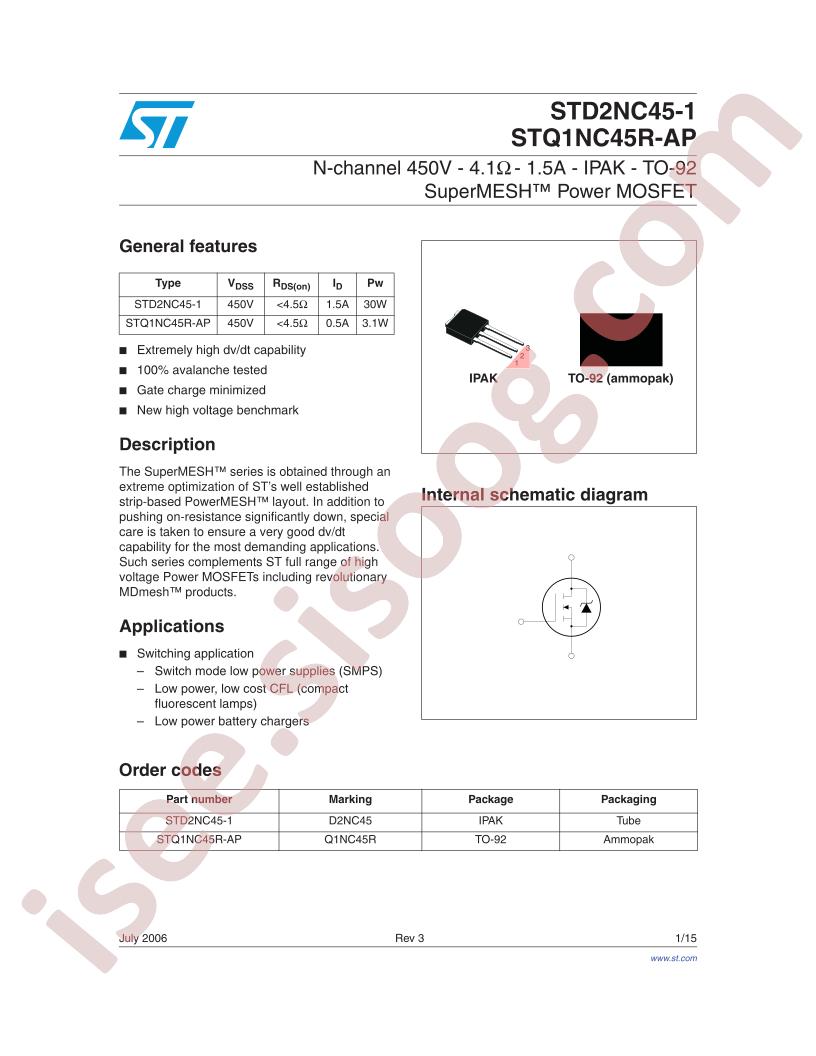

STD2NC45-1,STQ1NC45R-Ap Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: SuperMESH™
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 450V
  • Current - Continuous Drain (Id) @ 25°C: 500mA (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 4.5Ohm @ 500mA, 10V
  • Vgs(th) (Max) @ Id: 3.7V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 7nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 160pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 3.1W (Tc)
  • Operating Temperature: -65°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-92-3
  • Package / Case: TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
  • Base Part Number: STQ1
  • detail: N-Channel 450V 500mA (Tc) 3.1W (Tc) Through Hole TO-92-3
