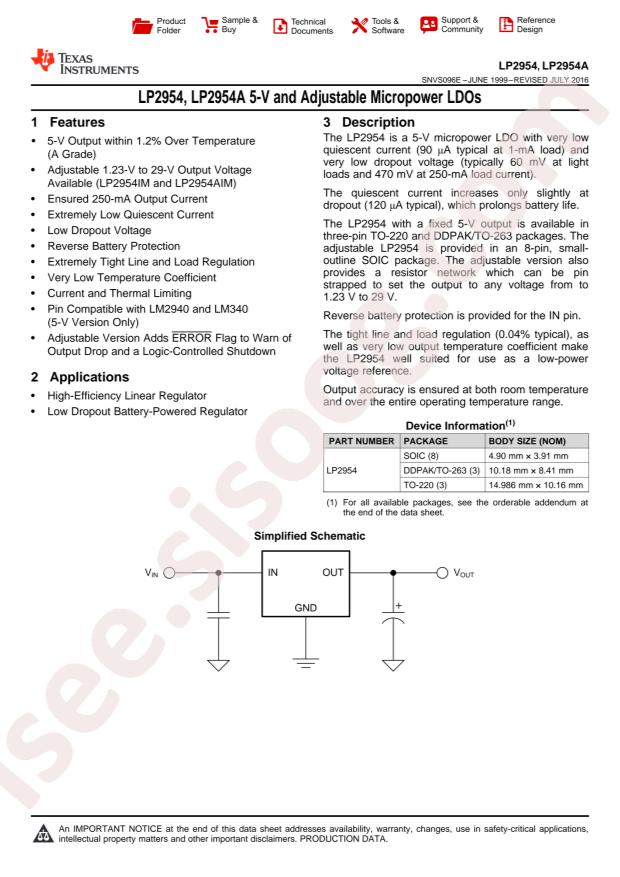

LP2954IMX/NOPB دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LP2954IMX/NOPB
|
|
حجم فایل
|
88.834
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
28
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Texas Instruments LP2954IMX/NOPB
-
Output Type:
Adjustable
-
Output Current:
250mA
-
Output Voltage:
1.23V~29V
-
Dropout Voltage:
800mV@(250mA)
-
Output Polarity:
Positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
30V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
150uA
-
Power Supply Rejection Ratio (PSRR):
-
-
Package:
SOIC-8-150mil
-
Manufacturer:
Texas Instruments
-
Control Features:
Enable
-
Base Part Number:
LP2954
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Current - Supply (Max):
33mA
-
Part Status:
Obsolete
-
Current - Output:
250mA
-
PSRR:
-
-
Series:
-
-
Voltage - Output (Min/Fixed):
1.23V
-
Mounting Type:
Surface Mount
-
Number of Regulators:
1
-
Current - Quiescent (Iq):
150µA
-
Output Configuration:
Positive
-
Voltage Dropout (Max):
0.8V @ 250mA
-
Supplier Device Package:
8-SOIC
-
Protection Features:
Over Current, Over Temperature, Reverse Polarity
-
Voltage - Input (Max):
30V
-
Packaging:
Cut Tape (CT)
-
Voltage - Output (Max):
29V
-
detail:

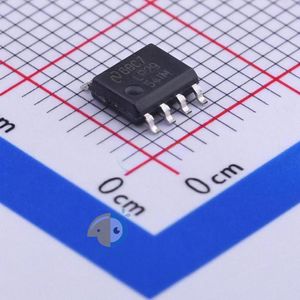

Linear Voltage Regulator IC 1 Output 250mA 8-SOIC
