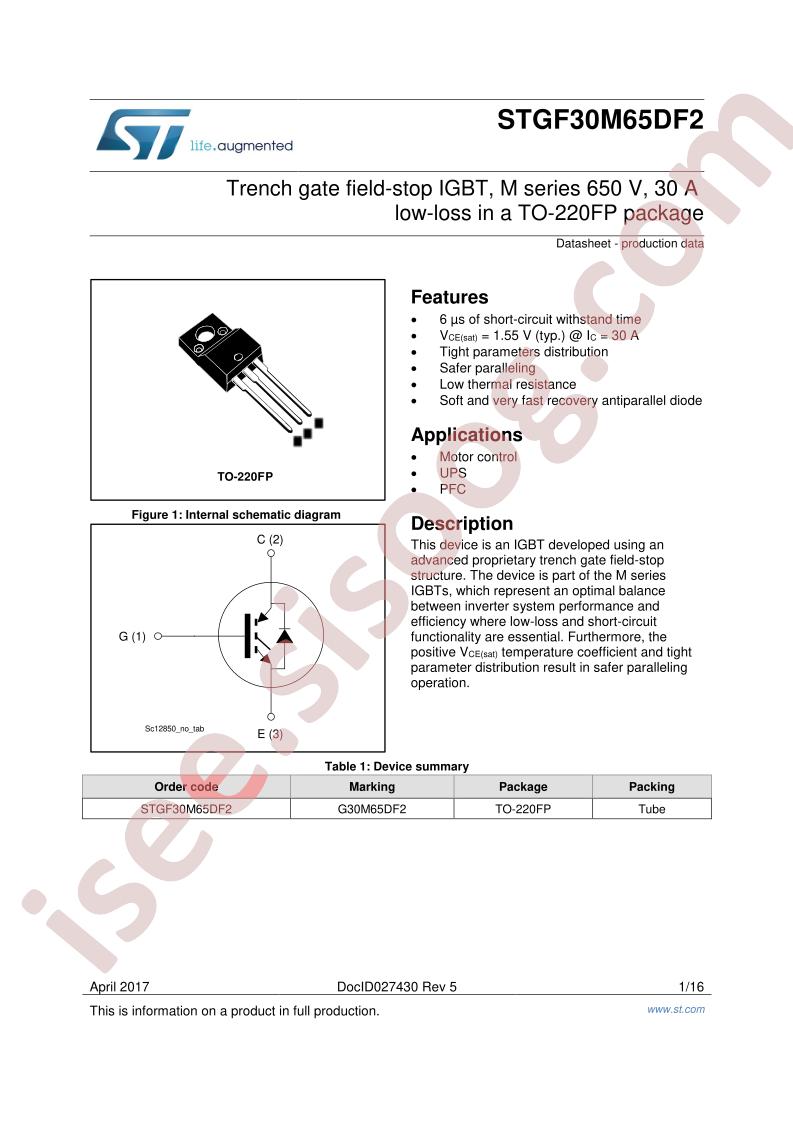

دیتاشیت STGF30M65DF2
مشخصات دیتاشیت
| نام دیتاشیت |
STGF30M65DF2
|
| حجم فایل |
725.821
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
16
|
مشخصات
-
Manufacturer:
STMicroelectronics
-
Series:
M
-
Packaging:
Tube
-
Part Status:
Active
-
IGBT Type:
Trench Field Stop
-
Voltage - Collector Emitter Breakdown (Max):
650V
-
Current - Collector (Ic) (Max):
60A
-
Current - Collector Pulsed (Icm):
120A
-
Vce(on) (Max) @ Vge, Ic:
2V @ 15V, 30A
-
Power - Max:
38W
-
Switching Energy:
300µJ (on), 960µJ (off)
-
Input Type:
Standard
-
Gate Charge:
80nC
-
Td (on/off) @ 25°C:
31.6ns/115ns
-
Test Condition:
400V, 30A, 10Ohm, 15V
-
Reverse Recovery Time (trr):
140ns
-
Operating Temperature:
-55°C ~ 175°C (TJ)
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3 Full Pack
-
Supplier Device Package:
TO-220FP
-
Base Part Number:
STGF30
-
detail:
IGBT Trench Field Stop 650V 60A 38W Through Hole TO-220FP
