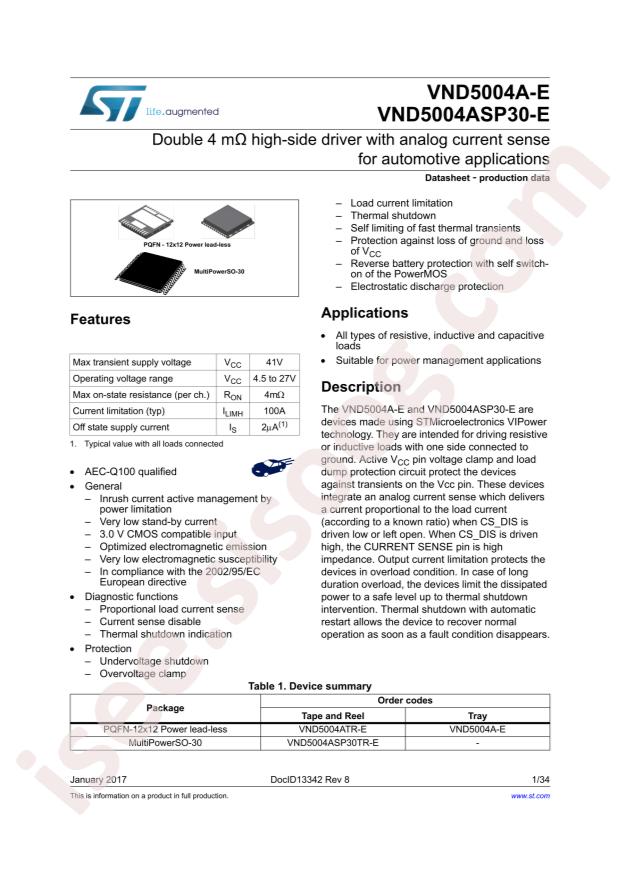

- دیتاشیت VND5004ASP30TR-E
VND5004ASP30TR-E دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | VND5004ASP30TR-E |
|---|---|
| حجم فایل | 88.644 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 34 |
دانلود دیتاشیت VND5004ASP30TR-E |
دانلود دیتاشیت |
|---|
سایر مستندات
VND5004A(SP30)-E 34 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Power Distribution Switches
- Datasheet: STMicroelectronics VND5004ASP30TR-E
- Package: MultiPowerSO-30
- Manufacturer: STMicroelectronics
- Series: VIPower™
- Packaging: Cut Tape (CT)
- Part Status: Active
- Switch Type: General Purpose
- Number of Outputs: 2
- Ratio - Input:Output: 1:1
- Output Configuration: High Side
- Output Type: N-Channel
- Interface: On/Off
- Voltage - Load: 4.5V ~ 27V
- Voltage - Supply (Vcc/Vdd): Not Required
- Current - Output (Max): 70A
- Rds On (Typ): 4mOhm (Max)
- Input Type: Non-Inverting
- Features: Auto Restart
- Fault Protection: Current Limiting (Fixed), Over Temperature, Over Voltage
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: MultiPowerSO-30
- Package / Case: 30-PowerSOP (0.630", 16.00mm Width)
- Base Part Number: VND5004
- detail: Power Switch/Driver 1:1 N-Channel 70A MultiPowerSO-30
