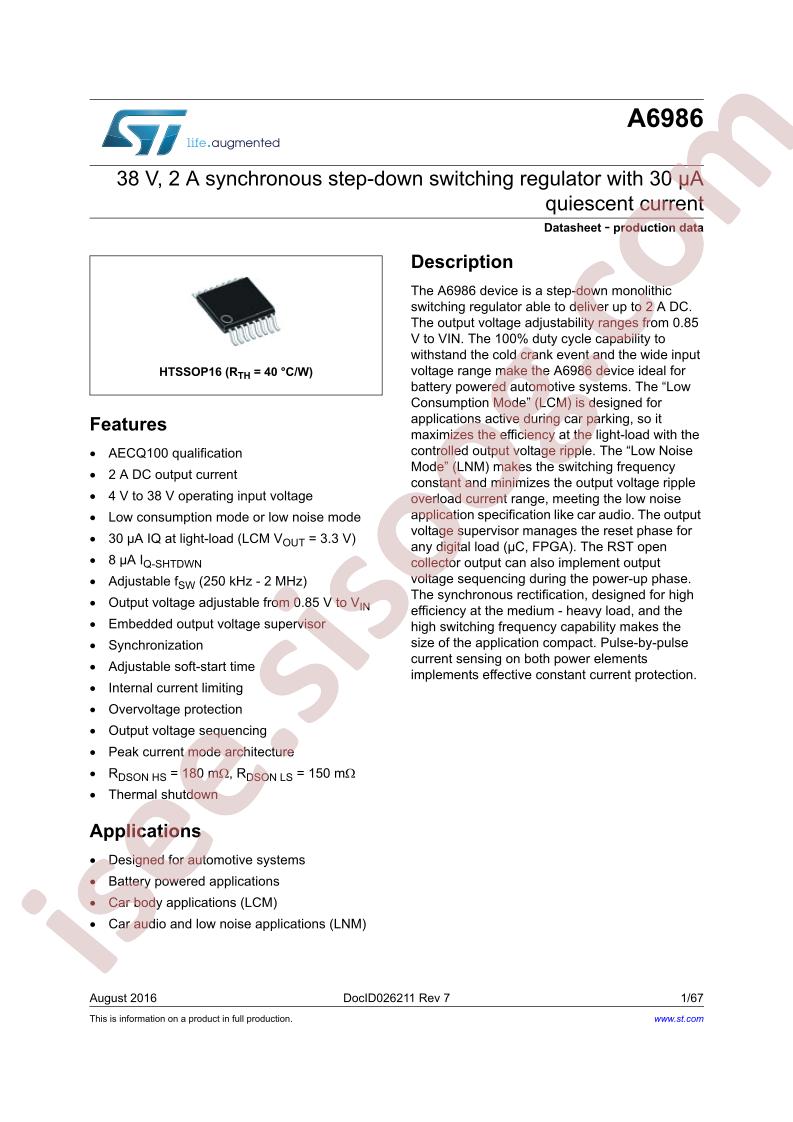

دیتاشیت A6986H5V
مشخصات دیتاشیت
| نام دیتاشیت |
A6986
|
| حجم فایل |
5261.821
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
67
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
Step-down
-
Output Type:
Fixed
-
Input Voltage:
4V~38V
-
Output Voltage:
5V
-
Number of Outputs:
1
-
Switching Frequency:
2MHz
-
Output Current (Max):
2A
-
Operating Temperature:
-40°C~+150°C@(TJ)
-
Synchronous Rectification:
Yes
-
Package:
HTSSOP-16
-
Manufacturer:
STMicroelectronics
-
Series:
Automotive, AEC-Q100
-
Packaging:
Tube
-
Part Status:
Active
-
Output Configuration:
Positive
-
Voltage - Input (Min):
4V
-
Voltage - Input (Max):
38V
-
Voltage - Output (Min/Fixed):
0.85V
-
Voltage - Output (Max):
38V
-
Current - Output:
2A
-
Frequency - Switching:
225kHz ~ 2.2MHz
-
Synchronous Rectifier:
Yes
-
Mounting Type:
Surface Mount
-
Package / Case:
16-TSSOP (0.173", 4.40mm Width) Exposed Pad
-
Supplier Device Package:
16-HTSSOP
-
Base Part Number:
A6986
-
detail:
Buck Switching Regulator IC Positive Adjustable 0.85V 1 Output 2A 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
