دیتاشیت TPS7A6933QDRQ1

مشخصات دیتاشیت

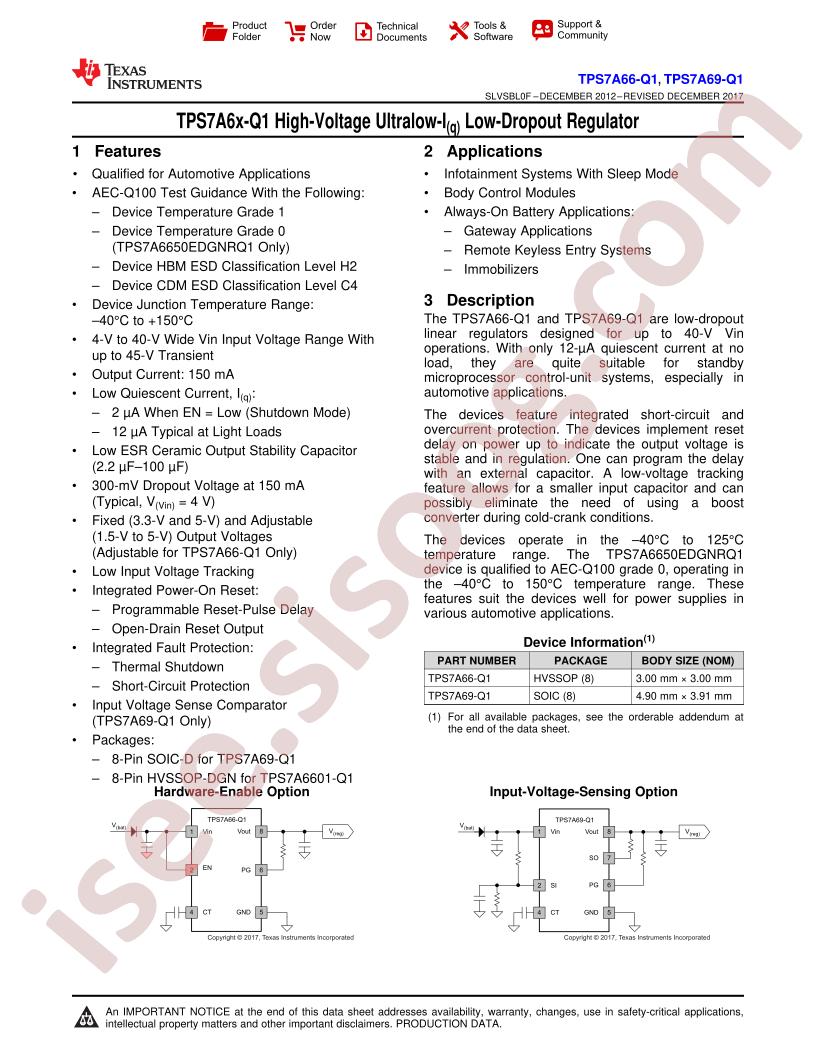

دانلود دیتاشیت TPS7A66xx/69xx-Q1	TPS7A66xx/69xx-Q1 Datasheet

RoHS: true
Category: Power Supply Chip/Linear Voltage Regulators (LDO)
Datasheet: Texas Instruments TPS7A6933QDRQ1
Output Current: 150mA
Output Voltage: 3.3V
Dropout Voltage: 0.45V@(150mA)
Output Polarity: positive
Number of Outputs: 1
Maximum Input Voltage: 40V
Operating Temperature: -40°C~+150°C@(Tj)
Quiescent Current (Ground Current): 20uA
Package: SOP-8
Manufacturer: Texas Instruments
Base Part Number: TPS7A6
Supplier Device Package: 8-SOIC
Voltage - Output (Max): -
Output Configuration: Positive
Current - Quiescent (Iq): 20µA
Output Type: Fixed
PSRR: 60dB ~ 40dB (100Hz ~ 100kHz)
Voltage Dropout (Max): 0.45V @ 150mA
Number of Regulators: 1
Mounting Type: Surface Mount
Packaging: Cut Tape (CT)
Voltage - Output (Min/Fixed): 3.3V
Protection Features: Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO), Watchdog
Series: Automotive, AEC-Q100
Voltage - Input (Max): 40V
Current - Output: 150mA
Part Status: Active
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Control Features: Enable, Power Good
detail: Linear Voltage Regulator IC 1 Output 150mA 8-SOIC
