دیتاشیت STW52NK25Z

STW52NK25Z

مشخصات دیتاشیت

نام دیتاشیت STW52NK25Z
حجم فایل 269.684 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

دانلود دیتاشیت STW52NK25Z

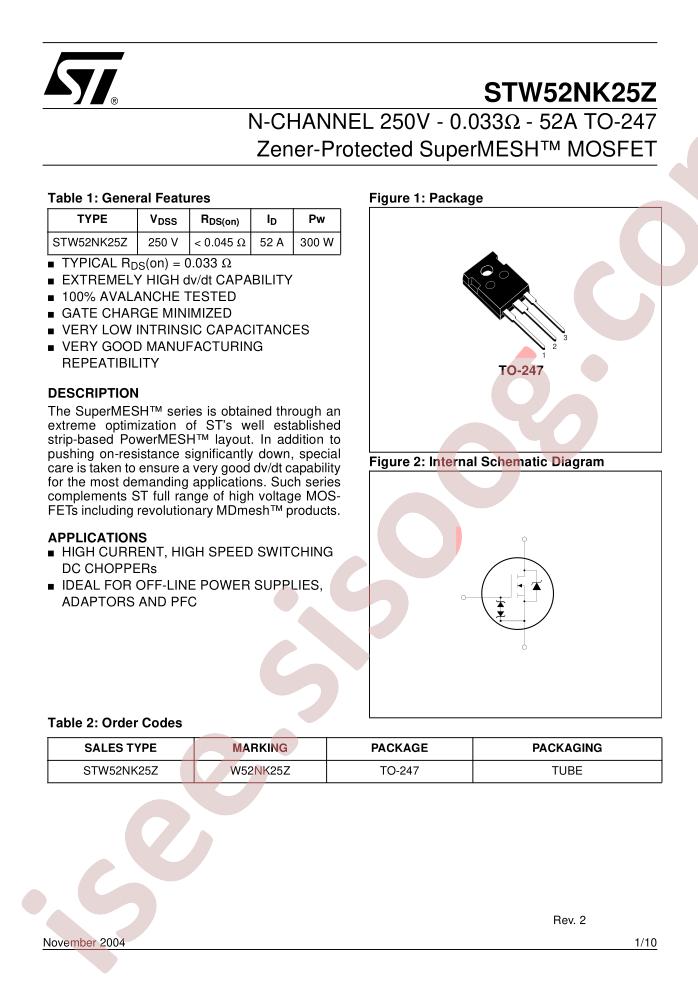

STW52NK25Z Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: SuperMESH™
  • Packaging: Tube
  • Part Status: Not For New Designs
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 250V
  • Current - Continuous Drain (Id) @ 25°C: 52A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 45mOhm @ 26A, 10V
  • Vgs(th) (Max) @ Id: 4.5V @ 150µA
  • Gate Charge (Qg) (Max) @ Vgs: 160nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 4850pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 300W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-247-3
  • Package / Case: TO-247-3
  • Base Part Number: STW52N
  • detail: N-Channel 250V 52A (Tc) 300W (Tc) Through Hole TO-247-3
