CSD18512Q5B دیتاشیت

CSD18512Q5B

مشخصات دیتاشیت

نام دیتاشیت CSD18512Q5B
حجم فایل 83.682 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

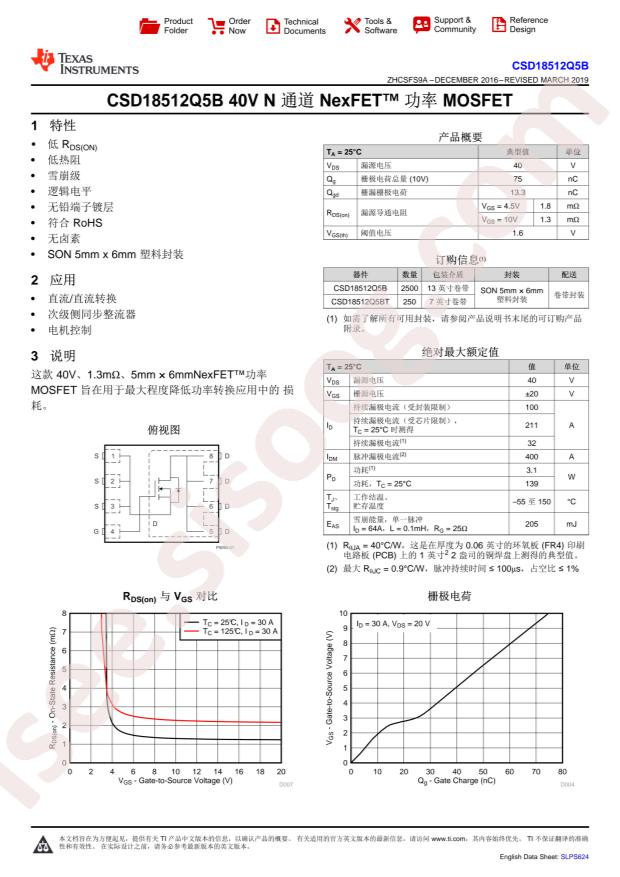

مشاهده دیتاشیت CSD18512Q5B

دانلود دیتاشیت

سایر مستندات

Power Management Guide 93 pages

CSD18512Q5B Datasheet 13 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: Texas Instruments CSD18512Q5B
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 139W
  • Drain Source Voltage (Vdss): 40V
  • Input Capacitance (Ciss@Vds): 7120pF@20V
  • Continuous Drain Current (Id): 211A
  • Gate Threshold Voltage (Vgs(th)@Id): 2.2V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 1.6mΩ@30A,10V

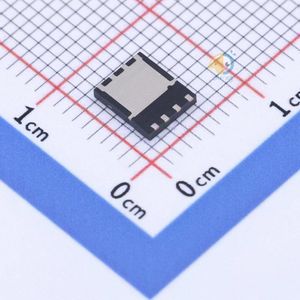

  • Package: VSON-CLIP-8(5x6)
  • Manufacturer: Texas Instruments
  • FET Type: N-Channel
  • Vgs(th) (Max) @ Id: 2.2V @ 250µA
  • Base Part Number: CSD1851
  • Supplier Device Package: 8-VSON-CLIP (5x6)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Input Capacitance (Ciss) (Max) @ Vds: 7120pF @ 20V
  • FET Feature: -
  • Drain to Source Voltage (Vdss): 40V
  • Current - Continuous Drain (Id) @ 25°C: 211A (Tc)
  • Mounting Type: Surface Mount
  • Rds On (Max) @ Id, Vgs: 1.6mOhm @ 30A, 10V
  • Packaging: Cut Tape (CT)
  • Series: NexFET™
  • Package / Case: 8-PowerTDFN
  • Vgs (Max): ±20V
  • Part Status: Active
  • Power Dissipation (Max): 139W (Tc)
  • Technology: MOSFET (Metal Oxide)
  • detail: N-Channel 40V 211A (Tc) 139W (Tc) Surface Mount 8-VSON-CLIP (5x6)
